How Do Carrier Rollers in Excavators Prevent Track Sag?

Track sag starts as a noise and ends as a repair. The upper run of the belt begins to droop, touches the frame on ruts and turns, and every touch grinds a little material off both surfaces. By the time the owner is looking at a stretched belt, the cause was usually a carrier roller that stopped holding the track up - a small part of the assembly doing a job that nothing else does.

Last updated: October 5, 2026

This guide covers how the upper run of a track is supported, why sag matters, what carrier rollers do to prevent it, what happens when one fails, how to read the signs, and what to confirm before replacing one.

Why the upper run needs supporting at all

A track is not a rigid ring. It runs around a drive sprocket at the back and an idler at the front, and the section between them - the upper run - is a length of flexible belt with nothing under it. Gravity does the obvious thing: the belt droops, and the amount it droops depends on how much unsupported length there is and how much tension it carries.

Carrier rollers - top rollers - are mounted between the sprocket and the idler, above the track frame, and they hold the belt up so the run stays roughly straight. Their job is not to carry the machine's weight; it is to set the height of the upper run and to keep the belt's line steady as the machine travels. That is why they sit in the middle of a length of track rather than at a wheel position, and why a machine with several of them has a more controllable upper run than one with fewer.

What sag actually does

Sag matters for three reasons, and none of them is cosmetic.

Contact with the frame. A drooping belt touches the track frame on ruts, on turns and under load. Every contact is metal or rubber grinding against steel, and the wear is shared between the belt's inner surface and the frame itself. Loss of control over the belt's line. A sagging run has more slack than a straight one, and slack is what lets a belt move sideways; the misalignment then takes the edges of the links and the flanges of the rollers. Slippage and temperature. A loose run allows the belt to move relative to its supports, which scuffs the running surfaces and builds heat in the belt - and heat is what ages rubber.

There is a feedback loop in all three: a sagging belt wears its supports, and worn supports let it sag further. That is why a failed carrier roller tends to become a story about a belt rather than about a roller.

How carrier rollers prevent it

A healthy carrier roller does three things at once. It sets the height of the run, so the belt stays off the frame. It sets the line, so the belt travels in the middle of the undercarriage rather than climbing a roller flange. And it carries a share of the belt's own weight, which keeps the run consistent whether the machine is travelling with a load or pivoting on the spot.

The failure mode is equally predictable. The roller's bearing is sealed for life, so when grit or water gets past the seal the bearing loses its lubrication, the roller stops turning, and a flat spot develops on the running surface. A stopped roller is no longer holding anything up: the belt sags onto the frame at exactly the point that needs support, and the wear begins on the belt's inner surface - invisible from outside until a lug or a cord shows.

Reading the signs

Four checks, all with the machine raised and the track slackened to allow it. Turn each carrier roller by hand: it should rotate smoothly with no flat spot, roughness or free play - a roller that will not turn has already stopped doing its job. Look for a weep: oil or grease streaked along the undercarriage after the machine has stood is the earliest warning a sealed roller gives, and it is the only one that arrives while the part is still usable. Look at the height of the run: with the belt correctly tensioned, the upper run should sit on the rollers rather than sagging between them or pressing on the frame. Look at the belt's inner surface for scuffing or polished patches, which is where a sagging run has been touching.

If the run is sagging but the rollers turn freely, the cause is usually tension rather than the rollers - and that is a different fix. Where a track is sagging and the machine is drifting, the diagnostic order is worth following before ordering parts, since the same symptom appears in the components that stabilise an undercarriage as well as in the rollers.

Replacing one, and what to check with it

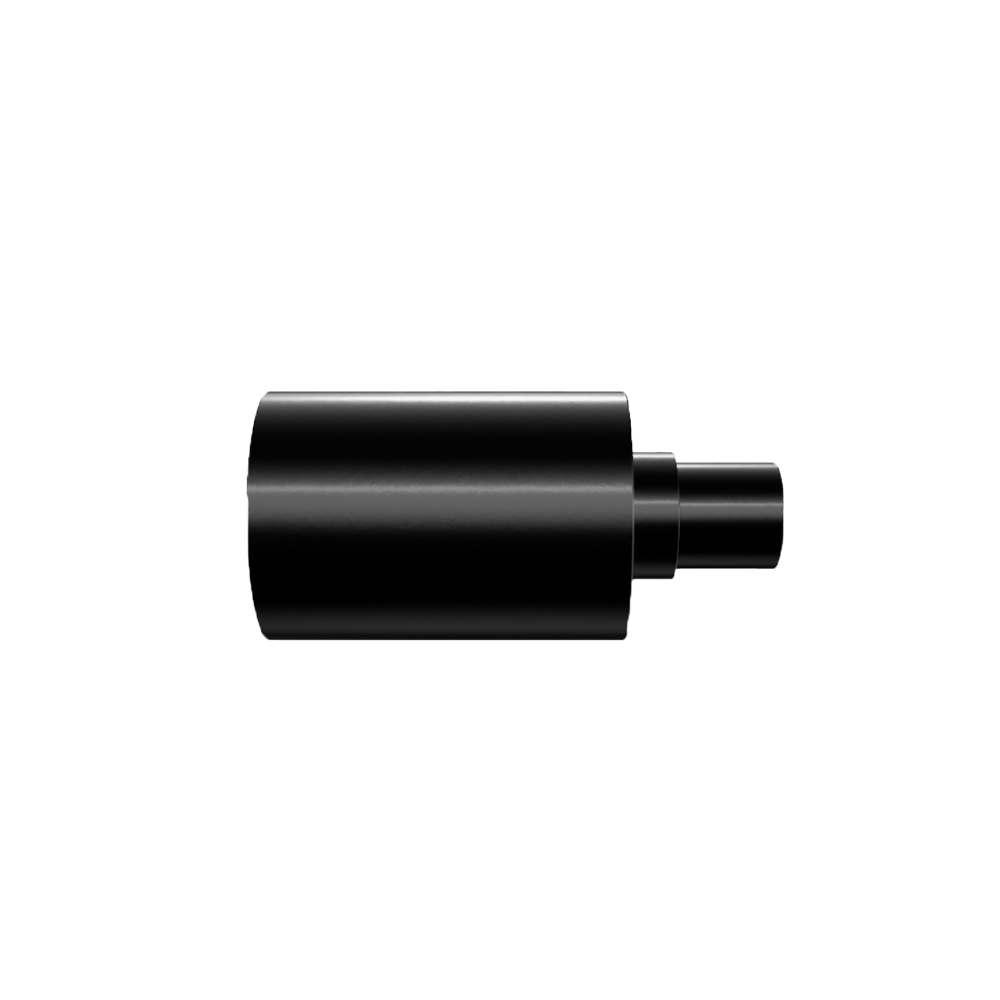

Carrier rollers are listed by part number and machine - an example is this carrier roller 9239529 for Hitachi ZX50U machines - and the fitment comes down to the same four items every time: part number against the serial number, roller diameter, bore or shaft diameter, and the mounting arrangement. Ask for the seal design and the bearing type as well, because those decide how long the replacement lasts in mud and dust.

Then inspect what the failed roller was protecting. A worn idler, a hooked sprocket or flat-spotted bottom rollers will wear the new part in the same pattern as the old one, and the parts that do the equivalent job lower down are listed the same way, as with this track roller for Kubota KX and U series machines. Where a machine is in for several parts, doing them in one job - with the belt off and the tension released - costs less than repeating the access work, and the carrier roller range is organised by machine so that comparison is possible before ordering.

This article is part of the carrier rollers guide, which covers what the top roller does, how to confirm fitment and how to read wear.

FAQs

How do carrier rollers prevent track sag?

They hold the upper run of the belt at a set height between the sprocket and the idler, so it does not droop onto the frame, and they keep the run's line steady as the machine travels. Remove that support and the belt sags where it most needs holding.

What happens if a carrier roller fails?

The bearing loses its lubrication when the seal is breached, the roller stops turning, and the belt sags onto the frame at that point. The belt's inner surface scuffs, the run becomes harder to control, and the wear spreads to the parts around it.

Can I run a machine with a failed carrier roller?

You can, and people do - which is why the damage is usually found later, on the belt. A stopped roller does not stop the machine; it just transfers its work onto the belt, the frame and the surrounding rollers.

Why is my track sagging if the carrier rollers are fine?

Usually tension. A belt that has stretched, a tensioner that has leaked, or a tension figure set too low will produce the same symptom. Check tension first, then the rollers, before assuming the belt needs replacing.

How often should carrier rollers be checked?

On the same schedule as track tension, and whenever the machine is raised for other work. On a compact machine it takes a couple of minutes, and a weep caught early is the difference between one part and a part plus a belt.
