What Are the Best Takeuchi TL12V2 Undercarriage Parts in Canada?

Browse sprocket product information.

What Are the Best Takeuchi TL12V2 Undercarriage Parts in Canada?
Posted on by John White

A TL12V2 is a high-flow loader working in construction and forestry, and that duty cycle decides which undercarriage parts it consumes. The machine carries more weight, turns under load more often and works on ground that attacks rubber - so the parts that fail first are the ones taking the combination of load and abrasion: the tracks, the bottom rollers and the drive sprockets. Buying well here is not about finding the cheapest part; it is about matching the specification to the work and confirming the fitment against the serial number.

Last updated: October 5, 2026

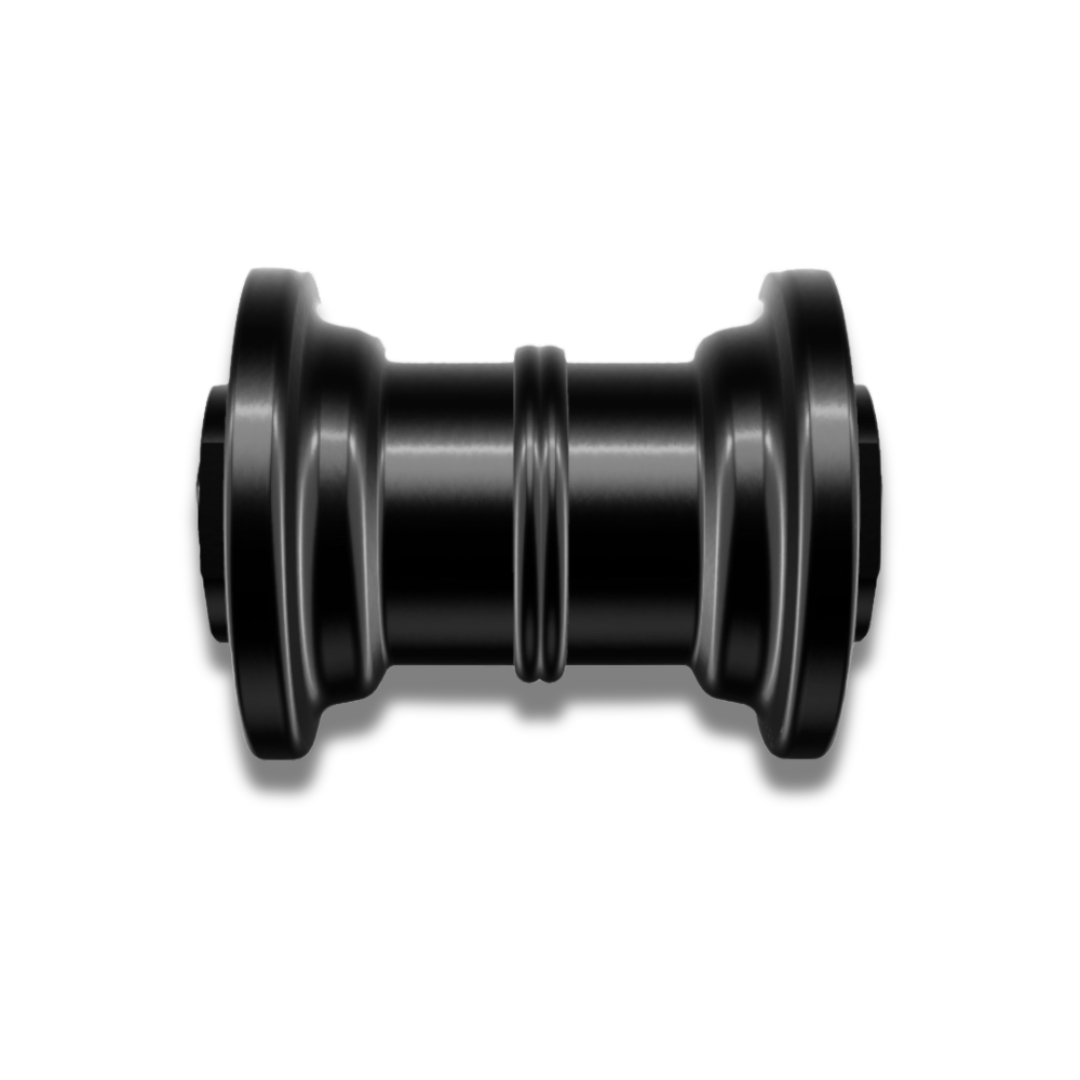

Track roller 04313-11100, a Takeuchi undercarriage roller listed by part number and machine

This guide covers which parts wear first on this machine class and why, how to tell a part is due, what separates a durable part from a cheap one, how to confirm fitment before ordering in Canada, and what to check while the machine is apart.

The parts, and the order they wear in

The undercarriage divides into five components, and on a high-flow loader they do not wear at the same rate. Rubber tracks provide ground contact and traction and absorb shock; they are the visible part and usually the last to fail on their own. Bottom rollers carry the machine's weight on the belt and take the axial loads of turning, which makes them the highest-wear item under a heavy duty cycle. Carrier rollers hold the upper run so it does not sag onto the frame. Idlers keep the track tight and aligned at the front. Drive sprockets engage the links and pass torque into the belt, and their teeth hook as they wear.

Beyond the undercarriage, the routine replacements are the machine's consumables: hydraulic filters, pins and bushings in the linkage, the bucket or attachment cutting edge, and the engine service items. Each is bought the same way - confirm what the machine takes, then compare specifications rather than prices.

How to tell which part is due

Four observations cover most of it, and all of them can be made with the machine raised and the track slackened.

Oil or grease weeping onto the undercarriage after the machine has stood means a roller or idler seal has failed, and since a sealed bearing cannot be re-greased in service, that is a replace-now symptom. A thump or flat spot at walking pace means a roller has stopped turning, and it is transferring its load into the belt and the frame. A track that will not hold tension, or that slaps the frame points at the idler, the tensioner or the frame rather than the belt. Track skipping under load points at the sprocket, whose teeth are climbing the links instead of seating in them. And wear concentrated on one side of a roller or one edge of a belt is an alignment symptom - a correction rather than a part.

Then plan at the level of the assembly. Where the rollers on one side share the same hours and ground and one has failed, the rest are close behind, and replacing the set in one job - with the track off and the tension released - costs less than three separate visits.

What separates a durable part from a cheap one

Two components that measure identically can differ substantially in service life, and the difference is always in the details a listing tends to omit. For a roller or idler: the seal design first, because contamination rather than load is what ends these parts on most sites, then the bearing type and load rating, then the material and treatment of the running surface. For a track: the cord construction and insert count, the tread pattern and depth as supplied, and the compound's published temperature band - which in Canada is a specification rather than a detail. For a sprocket: the material, the heat treatment of the teeth, and the tooth count and pitch.

Add the paperwork: a part-number cross-reference for your machine, and warranty terms stated as a period plus an operating-hours cap, whichever comes first, with freight responsibility named. A supplier who can state those from documents is selling a comparable part; one who answers with the quality of the brand is selling a price.

Sourcing in Canada

Three things decide a purchase here, and price is the last of them. Fitment, in writing - the part number against your model and serial number, not a family-level claim. Stock position with a delivery date, because a machine waiting on a part is the most expensive element of the job, and that is as true of a roller as of a track. The specification as supplied, so the part you receive is the part you compared.

Parts are listed by number and machine for exactly that reason, and the same discipline applies across the range - a track roller for a Kobelco machine is identified the same way as the Takeuchi roller in the photograph. The wider track roller range and the machine-specific notes in heavy-duty tracks for forestry and mulching are worth reading before a set is ordered, because that is the duty cycle a TL12V2 usually works in.

Maintenance that pays for itself

Four routines, none of them time-consuming, protect a machine on this duty cycle. Clean the tracks and undercarriage after muddy or abrasive work - packed material wears the belt and the frame and holds moisture against seals. Check track tension to the manual's figure, measured the manual's way, on both sides, and re-check it in the weeks after a new belt is fitted. Inspect rollers, idler and sprocket on a schedule rather than when the machine looks wrong. And correct alignment whenever a part is replaced, because a component running out of line wears its replacement in the same pattern.

Keep the hours with each set as well. On a machine with a heavy duty cycle the parts are individually modest and collectively significant, and the only way to make the annual spend predictable is to know which components your machine actually consumes - that record, not a published estimate, is what tells you whether a specification change is worth making next time.

This article is part of our excavator undercarriage parts guide, which covers the five wear components, the order they fail in and how to confirm fitment.

FAQs

Which undercarriage parts wear fastest on a Takeuchi TL12V2?

On a high-flow loader working construction or forestry, the bottom track rollers and drive sprockets wear first because they take the combination of load and axial force, followed by the tracks themselves and the idler.

How do I know a part needs replacing?

A weep at a roller or idler seal, a flat spot when a roller is turned by hand, a track that will not hold tension, and track skipping under load. The first two mean replace now; the tension symptom points at the idler; skipping points at the sprocket.

Are aftermarket parts good enough for this machine?

For wear parts, a documented aftermarket component does the same job - what decides it is the stated seal, bearing, material and cord specification, plus a part-number cross-reference and written warranty terms, not the badge.

What should I confirm before ordering in Canada?

The part-number cross-reference against your serial number, the specification as supplied, the stock position with a delivery date, and the warranty terms including who pays freight on a claim.

Should rollers be replaced as a set?

Where they share the same hours and ground and one has failed, yes - the rest are close behind, and doing the work in one job with the track off costs less than repeating it.
