Proper track roller bolt torque ensures machine safety, prevents premature undercarriage failure, and eliminates costly downtime for Canadian B2B contractors, rental fleets, and mining operators. However, track roller mounting torque is never universal. It changes dynamically based on excavator family, bolt diameter, thread condition, and OEM service procedures.
Whether you are servicing a compact Kubota utility machine in British Columbia or a heavy CAT dozer in the Alberta oil sands, this guide breaks down exact torque specifications, professional installation standards, and how AFT Parts delivers OEM-spec components across all Canadian provinces.
Excavator Track Roller Torque Specs by Model & Size
Generic torque ranges (such as a blind 450 N·m) often fail in the field because bolt size, grade, and clamping arrangements vary drastically across brands. Below is the comprehensive technical reference matrix combining model-specific groups and bolt sizes for heavy Canadian terrain:
| Machine Brand / Series Group | Bolt Size / Spec | Reference Torque Range | Typical Application / Notes |
| Mini & Compact Excavators | M16 (Mini) / M12–M14 | 150 – 310 ft-lb (approx. 200 – 420 N·m) | Mini excavators like Kubota KX057-4 or Bobcat E26; strict break-in checks required. |
| Mid-Size Commercial Excavators | M18 to M20 | 300 – 420 ft-lb (approx. 400 – 570 N·m) | Mid-size units like Hitachi ZX50U, John Deere 50D, and general construction. |
| Standard Excavzers & Heavy Does | M20 to 3/4 in | 250 – 430 ft-lb (approx. 340 – 580 N·m) | CAT D6R, Komatsu PC400, Kubota KX161-3, and heavy civil infrastructure. |
| Large Excavators & Heavy Mining | M27 / 7/8 in to 1-1/4 in | 550 – 1,650 ft-lb (approx. 750 – 2,200 N·m) | Large CAT dozers (D7R through D11T) in extreme shock-load quarry and mining conditions. |
Note: These values serve as model-specific references. Always verify against your exact machine service manual before final tightening.

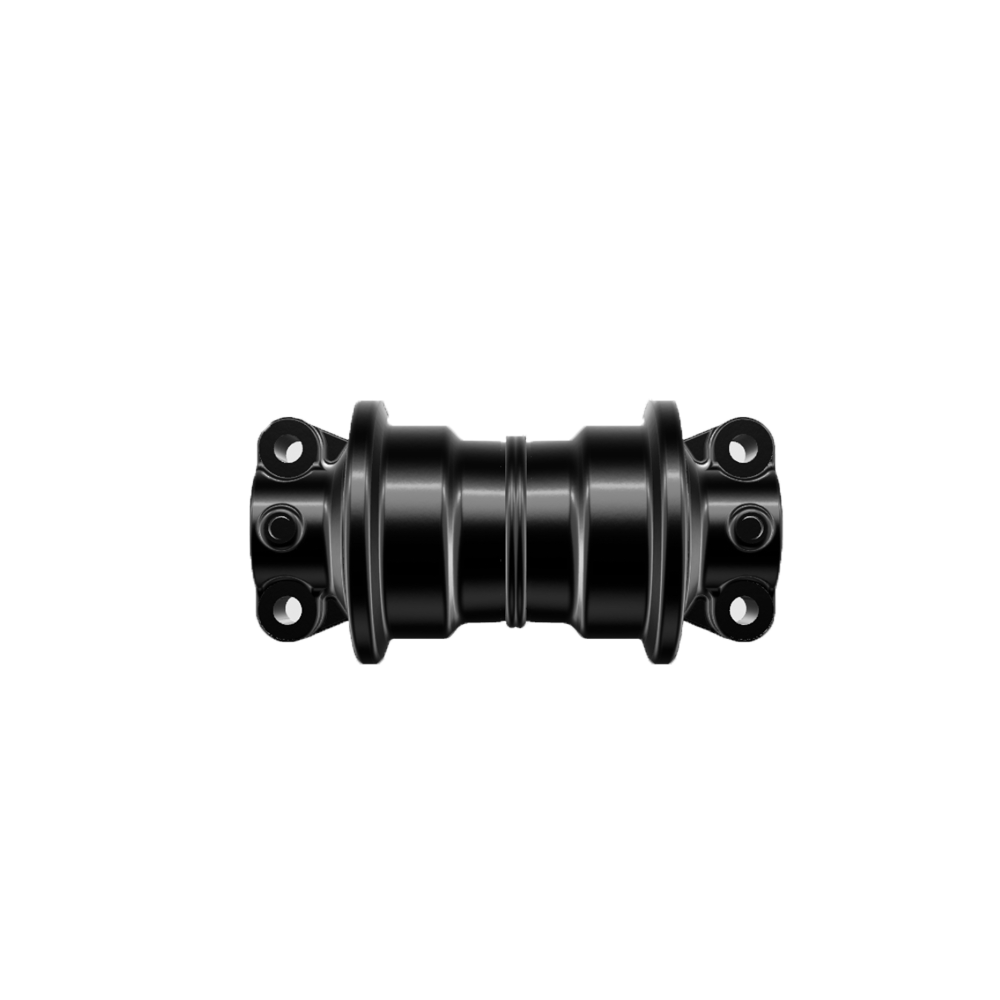

Professional Installation: How to Properly Torque Track Roller Bolts
An aftermarket roller can look correctly installed and still work loose within hours if installation standards are bypassed. Follow this professional 5-step engineering sequence:
-
Thorough Preparation & Cleaning: Clean mounting frame threads completely with a wire brush, scraper, and solvent. Remove all dirt, rust scale, and packed mud from the mounting frame and threads before seating the roller.
-
Component Verification: Compare the replacement AFT Parts roller with the removed part, ensuring identical flange position, shaft length, bore, and bolt pattern.
-
Manual Seating (Star Pattern): Run bolts in by hand to prevent cross-threading. Tighten them in a criss-cross or alternating star pattern across two or three progressive stages to distribute frame load evenly.
-
Staged Torquing: Apply torque in progressive stages—bring bolts to 50% of the final value on the first pass, then dial your calibrated wrench to 100% for the final sequence.
-
Mandatory Break-in Retorque: Retorque all mounting hardware after 8 to 10 operating hours, followed by regular 50-hour intervals or seasonal audits.
Critical Field Errors to Avoid During Installation
Field technicians frequently encounter premature bolt failure due to common procedural oversights:
-
Mistaking Joint Types: Confusing track shoe bolt torque, idler-retaining nuts, or recoil-spring hardware values with roller-cap specifications.
-
The "False Clamp" Trap: Allowing mud or old anti-seize residue to remain between the roller flange and the frame, which creates a false torque reading.
-
Lubrication Friction Errors: Using anti-seize or thread lubricants on dry-torque specifications, which alters friction coefficients and over-stretches bolts.
-
Reusing Damaged Hardware: Installing stretched, corroded, or fatigued bolts instead of replacing them with fresh high-grade hardware.
Regional & Seasonal Considerations for Canadian Operators
Canadian weather extremes introduce unique mechanical stresses to undercarriage assemblies:
-
Winter Contraction: In sub-zero Alberta and Saskatchewan winters, metal contraction naturally loosens bolts. Initial post-installation break-in checks are mandatory.
-
Summer Heat & Expansion: Oil sands heat and heavy summer operations cause thermal expansion; check hardware quarterly.
-
Logistics & Downtime Reduction: AFT Parts provides free ground shipping to Ontario, Quebec, BC, Alberta, and all Canadian provinces, eliminating costly cross-border import delays for mining and construction fleets.
AFT Parts Expert Views & OEM-Spec Quality
"At AFT Parts, we recommend a calibrated click-type or digital torque wrench for all undercarriage installations. Our OEM-spec track rollers—such as the 1205746 for CAT D6R ($526 CAD) and RD41121703 for Kubota KX161-3 ($185 CAD)—match factory metallurgical and torque values exactly. Backed by a 12-month pro-rated warranty, our components help Canadian operators in construction, mining, and forestry save thousands by preventing loose roller failures."
Frequently Asked Questions
What happens if I over-torque track roller bolts?
Over-torquing stretches bolts past their yield point, shears hardware, strips frame threads, and damages roller caps—often resulting in a far costlier repair than under-torquing. Always adhere to verified OEM and AFT Parts specifications.
Do aftermarket rollers require different torque values than OEM?
No. High-quality aftermarket rollers engineered to OEM standards (such as AFT Parts' inventory for CAT, Komatsu, Kubota, Bobcat, and Hitachi) match factory dimensions and bolt torque requirements precisely, ensuring safe, exact-fit installation without variation.
How often should I inspect track roller bolts after installation?
Perform an initial check at 8 to 10 operating hours, followed by routine checks every 50 hours. Rental fleets in Manitoba or Nova Scotia should implement quarterly audits to withstand harsh working conditions.
Where can I find support if my service manual is missing?
Contact the AFT Parts technical support team directly at support@aft-parts.com or via WhatsApp at +1 (236) 965-6529 (Monday–Friday, 9 AM–5 PM EST/PST) for rapid cross-referencing across 20+ heavy machinery brands. Performance Amplified.
