What Is the Best Hitachi Excavator Idler for Canadian Pros?
Browse idler product information.
The best idler for a Hitachi is the one whose part number matches your machine's serial number - and on these excavators that is a harder question than it sounds, because the EX and ZX series overlap, the same wheel appears in both Hitachi and John Deere listings, and a number that looks right can belong to the neighbouring size of machine. What is not in doubt is what separates a good idler from a bad one: the seal, the material and treatment of the running surface, and the alignment of the fork it sits in.
Last updated: October 6, 2026
This guide covers what the idler does on a Hitachi, how the numbering works across the EX and ZX series, why idlers wear out early when they should not, how to read the wheel you are removing, and what to insist on when buying in Canada. The full range is in the idler collection, and the wider picture in the idlers guide.
What the idler does on a Hitachi excavator

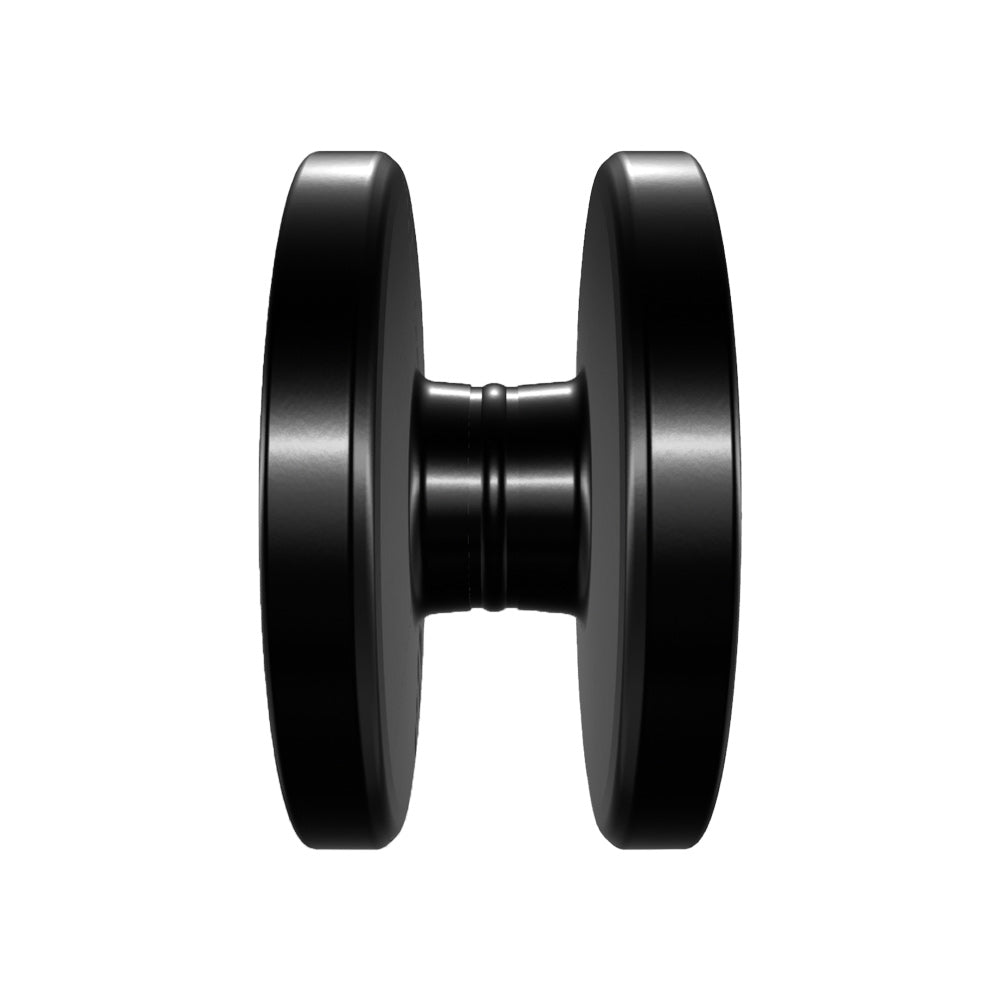

The idler is the wheel the track runs around at the front of the undercarriage, mounted in a fork at the end of the tensioner. It guides the chain through the front of its loop, holds the belt in line across the whole undercarriage, and carries the tensioning load that keeps the track seated on the drive sprocket and the rollers.
That combination explains most of the idler problems owners report. Because it carries the tensioning force, it takes the lateral load of every pivot - and on a machine that turns tightly all day, the front of the frame swings through the widest arc. Because it sits in a fork, its alignment depends on the yoke and the frame rather than on the wheel alone. And because it is sealed, it cannot be re-greased in service: once contamination gets past the seal, the bearing fails and the wheel either stops turning or develops play, and the belt then starts to wander.
How the numbering works across EX and ZX
Hitachi's compact and mid-size excavators span the EX series and the ZX series, and the undercarriage components changed as the models did. Two consequences matter when you are ordering.
First, many of these machines were built alongside John Deere equivalents, which is why the same idler can be listed for both brands - our own catalogue is a good example: idler 9154166 is listed for the John Deere 75C, 75D, 75G, 80C, 85D and 85G, and idler HT417 for exactly the same group of machines, while SI756 covers the Hitachi EX120-2, EX120-5, ZX120-3, EX100-2 and 490E. That overlap is not a mistake; it is what happens when one undercarriage was shared across two badges.
Second, big machines and small ones do not share wheels. SI829, for instance, is listed for the EX280-5, EX300-5, EX330-5, EX350-5 and EX370-5 - a family of 28- to 37-tonne machines - while the ZX50-class wheels are a different assembly altogether. Which is why the fitment answer comes from the part number against the serial number rather than from the model's badge, and why a listing that names only "Hitachi" has not finished the job.
Why Hitachi idlers fail early
An idler that wears out long before it should is usually one of four things, and only one of them is the idler.
The fork and the tensioner. If the yoke bushes are worn, the wheel sits at an angle and the belt wears the flange on one side. If the tensioner cylinder weeps, the machine cannot hold tension, the track runs slack, and the idler takes the whip. Both are common on older machines and both are cheaper to fix than a second idler.
Track tension. A belt run tight loads the idler bearing and the rollers continuously; one run slack lets the chain climb the sprocket and slap the frame. Either way the idler wears faster, and the setting has to come from the manual rather than from feel.
Alignment and the undercarriage around it. A grooved roller or a hooked sprocket changes how the chain sits, and the idler absorbs the difference. Replacing the wheel without looking at the rest of the set means the replacement inherits the same problem.
The part itself. Running-surface treatment, bearing quality and seal design are what decide the wheel's own life - which is the part of the equation a supplier can document, and the reason to ask for the specification rather than the price.
Reading the idler you are removing
With the machine supported and the track slack, four observations cover most of it. A groove worn into the running surface is normal end of life; note where it sits, because a replacement that wears into the same pattern means the chain is not running true. Wear on one side of a flange only points at alignment, tension or a worn yoke rather than at the wheel. Oil or grease weeping at the seal means the bearing has lost its lubrication and the assembly is finished. Cracks in the wheel or the mounting mean impact or fatigue - and on a machine that works rock, the frame should be checked for distortion before anything new is fitted.
Play felt with a bar under the wheel is worth measuring rather than judging by feel, because the idler's job is holding a precise line. The related check is on the tensioner: a machine that needs pumping up every few days is telling you about the cylinder, not the wheel.
Buying an idler in Canada
Four items belong in writing: the part-number cross-reference for your model and serial number; the specification as supplied, including the material and heat treatment of the running surface, the bearing type and the seal design; the warranty terms as a period plus an operating-hours cap, whichever comes first, with freight responsibility named; and the stock position with a delivery date.
For Canadian conditions there is one more practical question: how the part is described for cold-weather work. Steel does not care about frost, but the seals and the lubrication in a sealed roller or idler do, and a supplier who can talk about the specification should be able to answer that without inventing a number. On machines working in mud, clay and abrasive spoil, the same conversation is covered for one specific family in where to buy the best excavator idler for Hitachi machines.
FAQs
How do I know which idler fits my Hitachi excavator?
By the part number cross-referenced against your machine's model and serial number, then confirmed against the wheel diameter, running-surface width, flange height and bore of the idler you are removing.
Are Hitachi and John Deere idlers the same part?
In several cases yes - the machines shared undercarriages, so the same idler can be listed for both. That is exactly why the fitment has to be confirmed by number and serial rather than by brand.
Why did my idler wear out early?
Usually because of something around it: a leaking tensioner, worn yoke bushes, incorrect track tension, or a grooved roller or hooked sprocket changing how the chain sits. The wheel is often the symptom rather than the cause.
Can an idler be re-greased instead of replaced?
No. These idlers are sealed, so once the seal has failed there is nothing to top up. Replacing it promptly matters because a seized idler also wears the track it drags against.
Should the idler be replaced with the tracks?
Inspect it whenever a track is off and replace it if it is due. The preparation is the same - release tension, support the belt, replace, re-tension - so doing both in one job costs less than returning to it.
