What Socket Size Fits Excavator Track Tension Bolts? (Universal Size Chart, Step-by-Step Installation & Preventative Maintenance)

Proper track tension is critical for preventing premature undercarriage wear, derailments, and costly jobsite downtime in harsh operating environments—such as Alberta oil sands, Quebec forestry, and British Columbia mining. Loose or degraded hardware costs significantly more than replacement parts. Using the correct socket size ensures smooth adjustments, protects threads, and extends the operational lifespan of your equipment.

Excavator track tension components typically require 36mm to 50mm deep-well impact sockets for major heavy machinery (such as CAT D6R at 50mm, Komatsu PC400 at 46mm, Kubota KX161 at 36mm, and Bobcat E32 at 41mm). However, exact socket and wrench requirements vary depending on whether you are servicing a Hydraulic Grease Cylinder Valve, a Mechanical Threaded Screw Adjuster, or Undercarriage Access Cover Plates.

This universal guide provides exact socket sizes across 20+ top brands, step-by-step track reattachment procedures, root-cause derailment diagnostics, and maintenance protocols. Pair your service with AFT Parts' OEM-spec bolts, nuts, and undercarriage components—available Canada-wide with a 12-month pro-rated warranty and free provincial shipping.

Socket & Wrench Sizes by Tensioning System Type

Because excavators utilize different systems (hydraulic grease-cylinder release valves versus manual mechanical screw adjusters) and vary across manufacturers, required sizes depend on the specific component being adjusted.

System A: Hydraulic Grease Cylinder Valves (Standard & Major Brands)

On most modern compact, mid-size, and heavy excavators (such as CAT, Kubota, Bobcat, Komatsu, Hitachi, John Deere, JCB, and Doosan), track sag is regulated by a hydraulic grease cylinder.

• Access & Cover Plate Bolts: 14mm, 19mm, or 9/16-inch sockets are standard for removing the protective outer plate on the track frame (e.g., 9/16-inch for Kubota KX91 cover plates).

• Grease Relief Valve / Fitting: 19mm, 24mm, or 1/8" NPT sockets are used to loosen or completely remove the outer grease valve to bleed hydraulic pressure and loosen the track.

System B: Mechanical Screw Tensioners (Compact & Chinese Mini Excavators)

Budget 1-ton to 2-ton imported mini excavators (such as AGT, CFG, L12 models) and mini skid steers frequently rely on a manual threaded rod with a dual-nut locking mechanism instead of a hydraulic grease cylinder.

• Mechanical Adjuster Jam Nut / Locknut: 30mm, 32mm (1-1/4 inch), or 36mm deep-well impact sockets (or 1-1/4" / 1-1/2" SAE wrenches) are required to break loose the heavy outer locknut.

• Mechanical Adjuster Studs / Bolts: 16mm, 17mm, 18mm, or 5/8-inch sockets are used to turn the inner threaded adjustment bolt once the main jam nut is freed.

• Large Industrial / Compact Loaders: Heavy-duty track tension adjustment bolts on larger compact equipment (such as the Bobcat MT100) require 1-1/2 inch sockets.

Universal Excavator Track Tension Socket & Torque Compatibility Chart

Refer to the master cross-reference chart below to match your machine make, model, system type, required socket sizes, and torque specifications:

Brand & Model / Series	Machine Class	System Type	Socket / Wrench Size	Grease Fitting / Thread Spec	Factory Torque Spec (Nm)	Target AFT Replacement Part
CAT D6R / D6N / D8 Series	Heavy Dozer / Excavator	Hydraulic Cylinder	50 mm	1/8" NPT	450–500 Nm	AFT CR5350 Heavy Kit
Komatsu PC400 / PC300	Heavy Excavator	Hydraulic Cylinder	46 mm	M10 x 1.0	400–450 Nm	AFT PC400 Bolt Set
Kubota KX161 / KX040 / KX91	Compact Mini Excavator	Hydraulic Cylinder	36 mm (14mm/9/16" Cover)	1/8" NPT	250–300 Nm	AFT KX161 Tension Kit
Bobcat E32 / E50 / MT100	Mini Excavator / Loader	Hydraulic / Mechanical	41 mm (1-1/2" for MT100)	M8 x 1.0 / Threaded	300–350 Nm	AFT E32 Bolt/Nut Assembly
John Deere 50G / 85G	Mini / Mid Excavator	Hydraulic Cylinder	38–45 mm (19mm/24mm Valve)	1/8" NPT	320–380 Nm	AFT JD Relief Valve Assembly
Kobelco SK210 / Case	Mid-Size Excavator	Hydraulic Cylinder	42 mm	M10 x 1.25	350–400 Nm	AFT SK210 Fastener Kit
Ditch Witch Mini Series	Compact Ditcher	Hydraulic / Mechanical	32 mm	1/8" NPT	220–270 Nm	AFT DW Track Adjuster
Chinese Imports (AGT, CFG, L12)	1T–2T Mini Excavator	Mechanical Screw	32 mm (Jam Nut) / 16 mm (Bolt)	Threaded M20 Stud	Manual Adjustment	AFT Mechanical Threaded Rod
Doosan / JCB / Hitachi	Mid / Heavy Excavator	Hydraulic Cylinder	41–46 mm	1/8" NPT / M10	380–420 Nm	AFT Multi-Brand Universal Bolt

Step-by-Step Guide: How to Safely Reattach & Tension Excavator Tracks

When a mini or standard excavator track derails on the jobsite, prepare the proper tool kit and follow this certified step-by-step walkthrough to ensure workplace safety and prevent equipment damage.

Essential Tool Kit Required

1. Hydraulic Jack / Bottle Jack: Rated to match or exceed the excavator's operating weight to lift the track frame off the ground safely.

2. Heavy-Duty Pry Bar: Used to leverage the track links and align them with the front idler and drive sprocket.

3. Deep Impact Socket Wrench Set: Sizes ranging from 14mm to 50mm (including 16mm, 19mm, 24mm, 32mm, 36mm, 41mm, 46mm, 50mm).

4. High-Pressure Grease Gun (5000–10000 PSI): Equipped with a sealed flexible hose to inject grease into the cylinder piston.

5. Soft-Faced Mallet: Rubber or brass hammer to tap components into alignment without damaging steel track links or sprocket teeth.

6. Cleaning & Prep Tools: Wire brush, scraper, and high-pressure washer to remove mud, rocks, and debris from undercarriage mating surfaces.

7. Safety Supports: Solid wooden blocks or heavy steel jack stands to crib the machine after lifting.

Step-by-Step Track Installation Workflow

Step 1: Safety Prep & Site Cleaning

Park the excavator on firm, level ground, lower all attachments, shut down the engine, and engage the parking brake. Put on personal protective equipment (PPE), including safety glasses, heavy work gloves, and steel-toe boots. Use a wire brush and high-pressure washer to clear accumulated mud, gravel, and debris from the track frame, drive sprocket, and idler wheel.

Step 2: Release Track Pressure / Tension

• For Hydraulic Systems: Locate the track frame access plate and remove it using a 14mm or 19mm socket. Use the correct deep socket (e.g., 24mm, 36mm, or 50mm) to turn the grease release valve counterclockwise 1 to 1.5 turns. Grease will bleed out under pressure, allowing the cylinder to retract and creating necessary slack. Safety Warning: High-pressure grease can cause severe injection injuries. Never remove the valve completely and keep face and hands away from the relief port.

• For Mechanical Systems: Use a 30mm or 32mm socket to loosen the outer locknut/jam nut, then use a 16mm socket to turn the inner adjustment bolt counterclockwise to relieve thread tension.

Step 3: Lift and Secure the Excavator

Position the hydraulic jack (or use the excavator’s boom/bucket) directly under the elevated track side frame support point. Raise the machine until the track clear off the ground. Mandatory Safety Step: Immediately place wooden cribbing blocks or metal shims under the machine frame. Never rely solely on hydraulic jacks or boom holding valves while working around or under elevated equipment.

Step 4: Align and Mesh the Track

Insert the pry bar between the derailed track and the idler wheel flange. Pull the track over the front idler, ensuring the inner links align with the center guide flange. With one person holding the track in position with a pry bar, a second operator slowly engages the travel motor (at low idle) to rotate the drive sprocket, pulling the track teeth cleanly into engagement with the track link pockets. Fine-tune alignment using a brass mallet.

Step 5: Lower Machine & Adjust Tension Spec

Slowly lower the machine back to the ground.

• For Hydraulic Systems: Close the release valve securely. Attach a 5000 PSI grease gun to the grease fitting and pump fresh grease into the cylinder until the track tightens.

• Correct Tension Measurement (Sag Standard): Measure the slack in the middle section of the track frame directly above the upper carrier roller (or between the idler and sprocket on supported setups). The track should sag approximately 1 to 2 inches (25 mm to 50 mm / 3 cm to 5 cm). Applying light downward pressure should reveal slight elasticity without looseness.

• For Mechanical Systems: Turn the 16mm adjusting bolt clockwise until the 1–2 inch sag is achieved, then tighten the 32mm jam nut firmly against the frame bracket to lock the setting.

Step 6: Final Inspection and Operational Test

Verify there is no lateral offset or debris trapped in the undercarriage. Start the machine, clear the immediate area, and slowly travel forward and backward in a straight line, followed by gradual turns. Listen for unusual noise, track hopping, or binding before returning the machine to full service.

Root Causes of Track Detracking & Maintenance Best Practices

Undercarriage maintenance represents up to 50% of machine lifetime operating expenses. Understanding failure modes prevents recurring derailments:

Primary Causes of Track Detracking

1. Incorrect Track Tension: Tracks that are too loose slip off during sharp pivots or slope operations. Tracks that are too tight accelerate sprocket tooth profile wear, stretch track pitch, and raise final drive operating temperatures.

2. Debris Accumulation: Mud, gravel, ice, and vegetation packed into the roller frames force the track links outward, disengaging them from sprocket teeth.

3. Component Wear & Pitch Mismatch: Worn sprocket teeth ("pointed profile"), grooved idlers, cracked track shoes, or elongated track link pitch cause poor engagement and frequent jumping.

4. Operator Misuse: Frequent sharp counter-rotations, sudden acceleration/braking, and driving across steep inclines place excessive lateral forces on track guides.

Operator Daily Maintenance Protocols

• Weekly Sag Verification: Check track tension weekly. Tighten slightly when operating in soft mud to prevent debris entry; loosen slightly when operating on hard rock to reduce impact stress.

• Daily Undercarriage Washing: Wash out clay, rock, and debris daily using a high-pressure washer or wire brush—especially after working in freezing temperatures to prevent locked rollers.

• Monthly Wear Inspections: Inspect track links, shoes, drive sprockets, carrier rollers, and bottom rollers monthly for cracking or abnormal wear patterns. Replace worn sprockets in pairs to avoid rapid pitch destruction on new rubber tracks.

• Standardized Operator Training: Major manufacturers (such as SANY, CAT, and Komatsu) emphasize smooth travel controls. Avoid sharp pivot turns and control slope speeds to reduce side loading on undercarriage frames.

• Routine Lubrication: Keep tensioner pistons, roller bearings, and grease valves properly lubricated according to factory manual schedules using premium lithium grease.

Heavy-Duty Track Tensioning Tool Kit Packages

Equip your mobile service vehicles and field mechanics with certified, impact-rated undercarriage service tools:

Tool Kit Level	Included Tool Specifications	Primary Target Applications	Direct CAD Price
Basic Field Kit	• Deep Chrome-Moly Impact Sockets (36mm–50mm) • 24" Heavy Drive Breaker Bar • Manual High-Pressure Grease Gun (5,000 PSI) • Wire Brush & Scraper Tool Set	Independent Contractors & Small Fleets	CAD $299
Pro Service Tech Kit	• Complete Metric/SAE Socket Set (14mm–50mm / 1-1/2") • Digital Drive Torque Wrench (100–600 Nm) • Battery-Powered Electric Grease Gun (10,000 PSI) • Heavy Pry Bars & Fitting Extractor Tools	Commercial Fleet Repair Shops & Mining Sites	CAD $999

Note: Registered AFT Franchise and Dealer Partners receive an instant 20% discount on tool bundles and replacement parts.

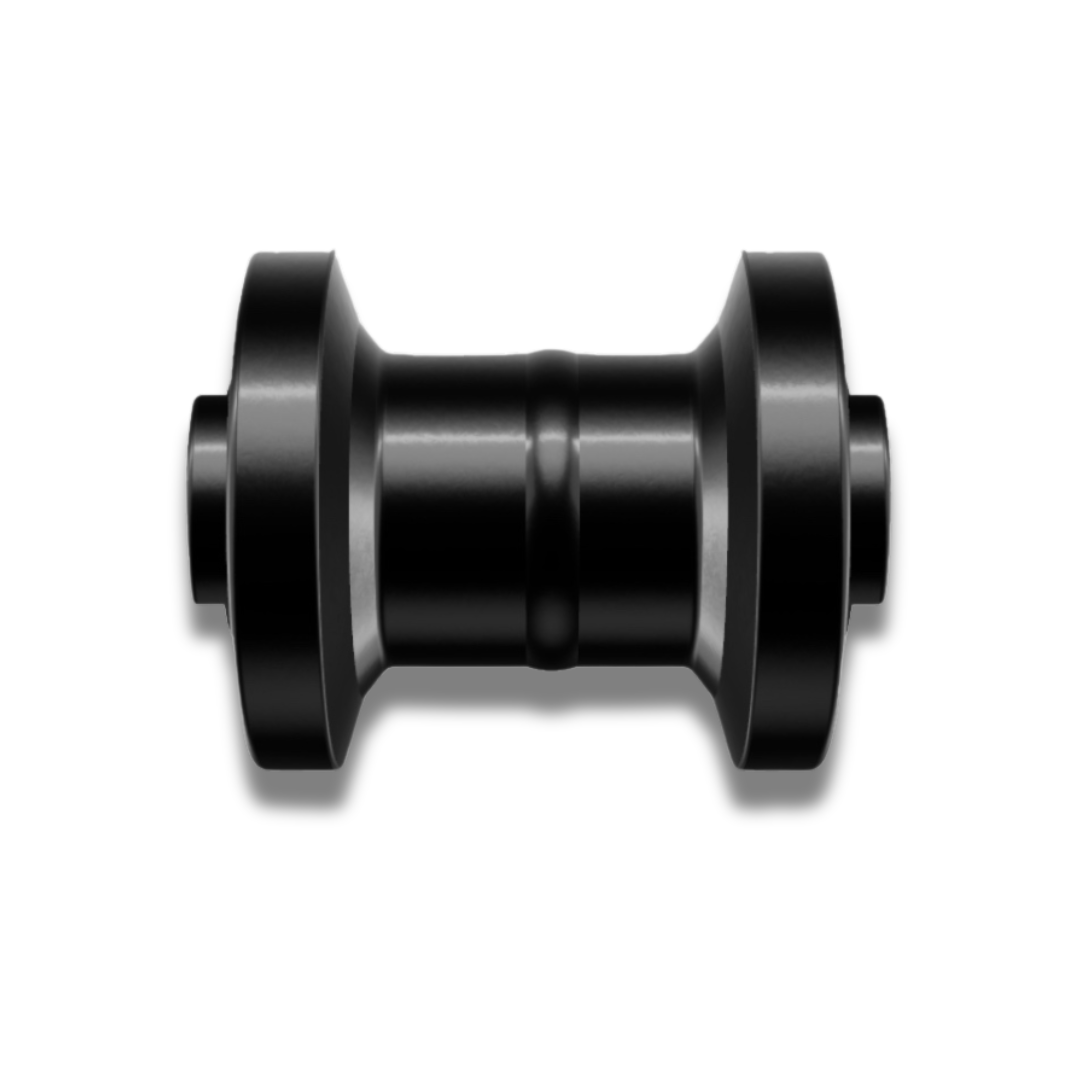

Expert Engineering Insights & Canadian B2B Procurement

"Operating in Alberta's abrasive oil sands or Quebec's dense forestry trails severely tests undercarriage hardware. Upgrading to sealed, OEM-spec tension valves and hardened steel bolts prevents thread stripping and internal seal degradation, cutting annual undercarriage downtime by up to 35%."

— AFT Parts Engineering Team

Why Source Undercarriage Hardware from AFT Parts?

• Exact OEM Compatibility: Direct-fit replacement hardware for 20+ major brands, including CAT, Komatsu, Kubota, Bobcat, John Deere, Hitachi, Kobelco, JCB, Doosan, and SANY.

• 12-Month Pro-Rated Warranty: All bolts, nuts, tension valves, and undercarriage components are backed by a comprehensive 12-month structural warranty.

• Fast Cross-Canada Shipping: Zero import duties or border delays. Enjoy free ground shipping across all Canadian provinces (British Columbia, Alberta, Saskatchewan, Manitoba, Ontario, Quebec, New Brunswick, Nova Scotia, Newfoundland).

Frequently Asked Questions

Q1: What is the most common excavator track tension bolt socket size?

For standard mid-to-heavy excavators (15–40 ton), 46mm and 50mm deep impact sockets are most common. For compact mini excavators (1–6 ton), 36mm and 41mm sockets are widely used, alongside 19mm and 24mm sockets for grease relief valves.

Q2: How do I adjust track tension on a Kubota KX161 or KX040 mini excavator?

Remove the cover plate (9/16" or 14mm socket), then use a 36mm deep socket to loosen the grease release valve counterclockwise until grease bleeds out. Adjust to 25–30mm sag, tighten the valve, attach a grease gun, and inject grease until proper elasticity is restored. (Pair with AFT Parts OEM Track Roller RD41121703 for optimal service life).

Q3: What should I do if my Bobcat E32 track tension bolt is seized?

Apply high-grade penetrating oil and let it soak. Use a 41mm heavy-duty impact socket on an pneumatic or electric impact wrench. If threads are stripped or damaged by grit, replace the unit with AFT Parts OEM-spec bolts and nuts.

Q4: How do I loosen tracks on a Chinese mini excavator with a mechanical screw system?

Use a 30mm or 32mm deep socket (or 1-1/4 inch wrench) to break loose the outer jam locknut. Then, use a 16mm or 5/8-inch socket to back out the inner adjusting bolt counterclockwise.

Q5: How tight should mini excavator tracks be set?

When supported off the ground or checked at rest, the middle section of the track (above the carrier roller) should show a sag of 1 to 2 inches (25 mm to 50 mm). Refer to your machine manual for precise model specifications.
