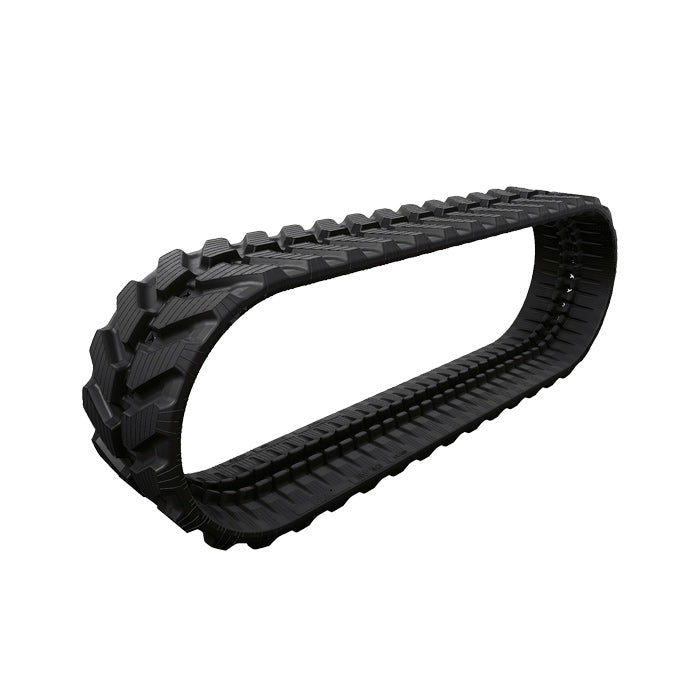

Rubber Track Center Guide vs. Side Guide: Which Evidence Settles the Match

Whether a rubber track is centre-guide or side-guide is decided by where the guide features sit on the inner surface and how they relate to the rollers, idler and sprocket on your machine. A listing's wording alone doesn't settle it. Seller terms overlap and vary, so the guide layout has to come from the machine and the track you removed, with dimensions alongside, not be inferred from a title.

Two tracks can share the same width, pitch and link count and still differ in guide arrangement. One retailer's ordering guide says exactly this: tracks with an identical size code can be physically incompatible because of the guide system, meaning the shape and layout of the internal lugs that interact with the sprocket, rollers and idlers. That is a seller's explanation, not a manufacturer standard, but it describes the risk this article is built around.

What the terms usually mean, and where they blur

Sellers describe the arrangement in several overlapping ways. Treat each as a claim to verify against the physical track, not as a definition.

• Centre guide: the retailer above describes drive lugs placed along the track's centreline.

• Offset or staggered: the same retailer describes lugs shifted off-centre to suit a frame that wouldn't clear a centred layout, or alternating left and right of centre.

• Outside or side guides: one track supplier, describing Cat and ASV tracks, says some tracks have a row of drive lugs down the centre plus a row of guide lugs on the outside that hug the rollers and undercarriage to keep the track straight. Its examples vary by machine and series: some tracks have a single centre row, others add outer guide rows, and a standard B-series track lacks the outer guide that the C series added.

• Letter suffixes: the same retailer says a letter after the size numbers can indicate the guide profile, listing N (narrow), W (wide), K (outside-guided), B (Bobcat-specific) and T (Takeuchi-specific). It doesn't claim these letters are universal, and I found no manufacturer standard that does. A letter may mean different things between brands, so don't read it as a key.

Because the same words describe different things in different catalogues, "side guide" on a listing doesn't tell you where the guides are on the track or how they meet your rollers.

The roller path is the decisive interface

The guide arrangement matters because it governs how the track sits on the rollers and idler. One operator manual states that the idlers guide the rubber track by acting on the lateral surfaces of the guide lugs. A retailer describes the "inside guide bottom" as the distance between the outer bottom surfaces of two opposing lugs, the width of the trough where rollers sit, and says that if it doesn't match the roller spacing, the track can de-track repeatedly or wear rollers unevenly. Those two statements make the roller path and the guide positions the interface to confirm.

For your machine, establish:

• Whether the rollers run on the track's centre or on either side of a guide row. This is a property of the undercarriage, so look at the machine and its documentation, not at a listing.

• Whether the idler and sprocket engage a centred row, offset rows or outer guides.

• Whether any guide feature sits outside the roller path, and whether the track on the machine now has such features.

I found no manufacturer document that gives a universal rule for telling centre-guide from side-guide by looking at the machine. Treat any rule from a catalogue as unverified until it matches the machine's documentation and the removed track.

Interface comparison card

Use these fields. Each one decides whether a candidate is the same interface, and none can be filled from a listing title alone.

A dimension matching while the guide layout is uncertain is a partial match. A partial match doesn't establish interchangeability.

Evidence to collect from the machine and removed track

Do any inspection under the machine's procedure and site controls. Don't lift, block, release tension, enter a pinch zone or remove guards to take these. If the track is already removed by qualified personnel, photograph it in a safe, stable position.

• A photograph of the machine plate and the complete track marking, with the size code and any suffix legible.

• Inner-surface photographs showing the full width, with every row of lugs or guides visible and a straight edge or ruler for scale.

• A close-up of one lug in each row, from the side and the end, showing its profile.

• A count of rows and a note of whether they sit on the centreline, off-centre or at the edges.

• Photographs of the visible rollers, idler and sprocket, showing where the track contacts them.

• A record of any wear on the guide-lug sides, flanges or frame.

• Any measurement taken, with the method and where it was taken.

Don't substitute a measurement from an article for one from your machine. Don't write down a lug height, spacing or clearance from the web.

Preparing the request

State the machine identity, the existing track's markings, your photographs, the counts and the measurements, and ask the seller to confirm in writing that the candidate matches the guide arrangement, the lug profile and the roller path for that machine. If the seller can't confirm those, treat the candidate as unverified.

Do not approve a track because the width, pitch and links match, because a letter looks familiar, or because the listing says "centre guide" or "side guide". If the evidence conflicts, for example the removed track shows outer guides and the candidate shows only a centre row, reject it or ask for clarification.

When the request is complete, AFTparts' Rubber Tracks collection can be used to find the relevant category and submit the evidence for a fitment check. The collection page alone doesn't establish compatibility, and this article hasn't verified any specific listing.
