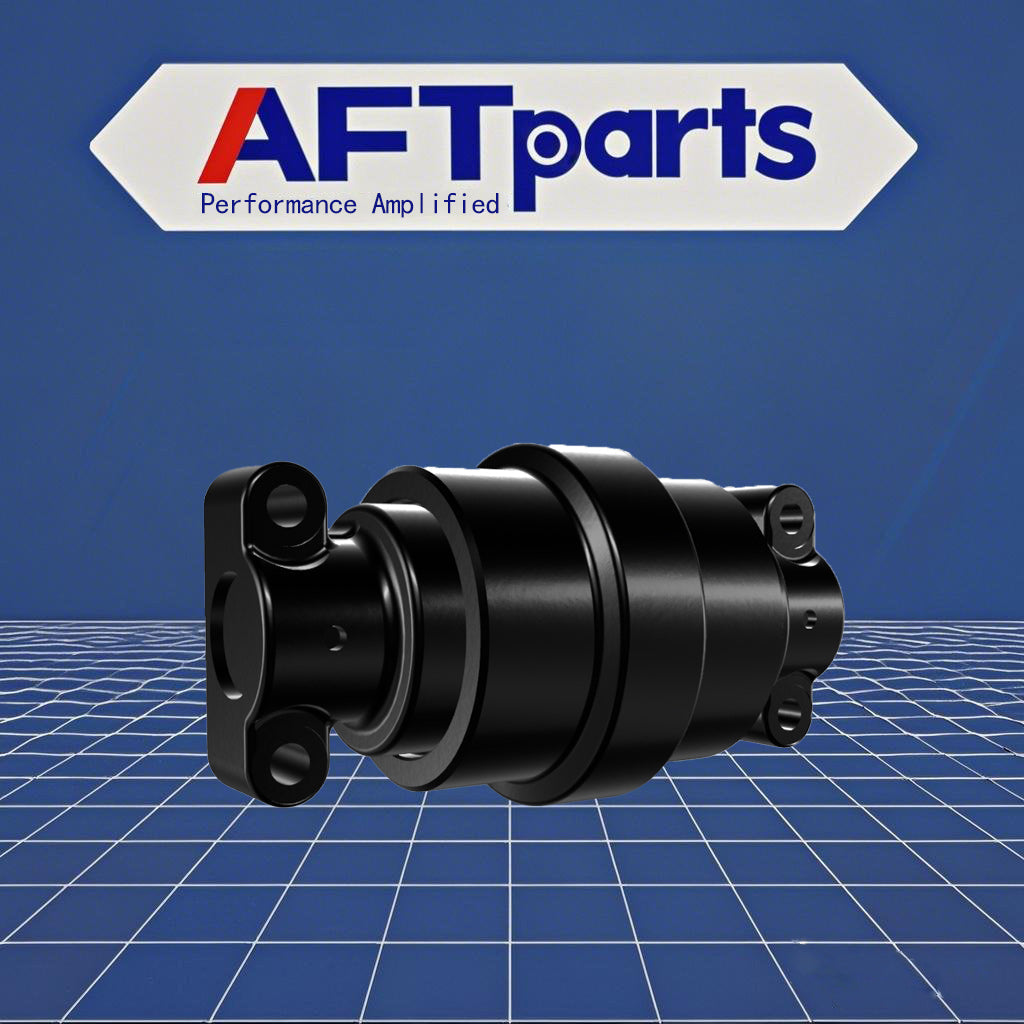

Track Roller Flange Touching Track Shoe Bolts: Check the Identities First

A roller flange touching shoe bolts is a reciprocal-contact problem. The marks on the flange and the marks on the bolt heads have to line up with each other, and with a track position where clearance disappears, before any single part can be blamed. The sources I found describe flange contact mainly with link pin bosses, rails and the track frame, not with shoe bolts. So treat flange-to-bolt contact as an unusual observation that needs verifying, not a known failure pattern.

For the installation sequence and mounting checks, see AFTparts' guide to installing track rollers correctly. This article covers only contact between a flange and shoe bolts.

What the sources say about flange contact

Wagner Equipment's undercarriage section names two clearance points to check when comparing roller options: roller flange to link pin boss, and roller flange to track frame. It also says that if a replacement roller has different tread diameter, flange diameter or frame-to-tread dimensions, those differences must be compensated for to prevent idler or sprocket interference, especially on the front and rear roller. A drilling-parts supplier lists interference between roller flanges and link pin bosses when both roller and chain have reached their service limits, and says rolling and sliding contact with the pin boss follows from lost clearance. Dozco notes that as tread wear increases, flange height rises relative to the worn tread surface.

These sources show that clearance near the flange can close for several reasons, each tied to a different part. None says shoe bolts are the usual contact point. Fj-ysm adds that an incorrect bolt length can prevent full thread engagement or cause interference, which is the one supplier statement here that links bolt choice to interference. Wagner says countersunk bolt holes are designed to protect the bolt heads.

Mapping both sides of the contact

Record contact from safe positions outside every pinch zone with the machine stopped and secured under its procedure. Do not run, lift or block the machine, move the track or reach near it to find where the parts meet.

Fj-ysm lists bright polished movement marks or rust streaks around a bolt head as evidence of relative movement between shoe, bolt and link, so a marked bolt head may point to a loose joint as well as to contact. Record them separately.

The matching condition is the one that closes the clearance. Note what the operator reports about the track's position when the contact happens, such as straight travel, turning or a particular slope, and what has been seen. Several suppliers connect directional flange contact with alignment, side loading, turning habits or track-guiding problems. Kensetsu Buhin says one outside flange worn can indicate outward drift, turning habits, external debris or track-guide interference. XMGT says excessive inner-flange wear suggests misalignment or derailment, where links rub against the flange. These support a check of alignment, but they don't establish it here. Where track position matters, qualified service finds it under the machine's procedure.

Identities to check before blaming a part

Don't assume a recently replaced part is at fault. Collect the identity of each part in the contact pair and the configuration around it:

• Machine make, model and serial number, with the side and position of the roller.

• Roller: flange arrangement, flange and tread dimensions from marked or manufacturer information, and any markings.

• Shoes: type, width, hole style and bolt spacing. Wagner says bolt spacing determines interchangeability of track shoes and advises choosing the narrowest shoe that gives adequate flotation, since wider ones loosen, bend and crack more easily.

• Bolts and nuts: length, head style and markings, and whether they match the shoe and link. XMGT warns against mixing property classes and against reusing single-use torque-to-yield bolts.

• Track chain and alignment: condition, link pin boss state, signs of misalignment.

• History: which of roller, shoes, bolts and chain were changed, and when.

If anything has been replaced recently, ask which part and what its markings say. A mismatch in one identity can look like a fault in another, and the evidence here can't separate them.

Choosing the next action

Hold the machine and ask qualified service to assess when marks on both flange and bolt heads are found, when bolts are loose, missing or damaged, when contact repeats on several rollers or shoes, or when any recent replacement changed a part in the pair. Don't grind or file parts, remove hardware, swap shoes, adjust tension or retighten bolts. Retightening can mask a problem, and tightening specifications belong to the manufacturer. Fj-ysm advises using the exact tightening specification for the machine and replacing damaged hardware.

Preparing a fitment request

If service identifies a roller, shoe or bolt set for replacement, don't approve a part from a partial match. Provide the machine's make, model and serial number, the roller's side and position, photographs of the flange, shoe, bolts and the marked contact area with any markings, your contact map and what remains unresolved. Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Track Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits or that a roller is the cause.

References

• Undercarriage Parts (Wagner Equipment)

• Why Excavator Track Shoe Bolts Keep Loosening: 7 Causes to Check (Fj-ysm)

• How to Solve the Problem of Surface Wear on Track Roller? (Drilling Track Parts)

• Track Roller Flange Wear Can Signal a Bigger Undercarriage Problem (Kensetsu Buhin)

• Track Roller Wear Patterns (XMGT)

• Avoid These 5 Critical Mistakes When Choosing Track Bolts and Nuts (XMGT)

• 7 Signs of Undercarriage Wear (Dozco)
