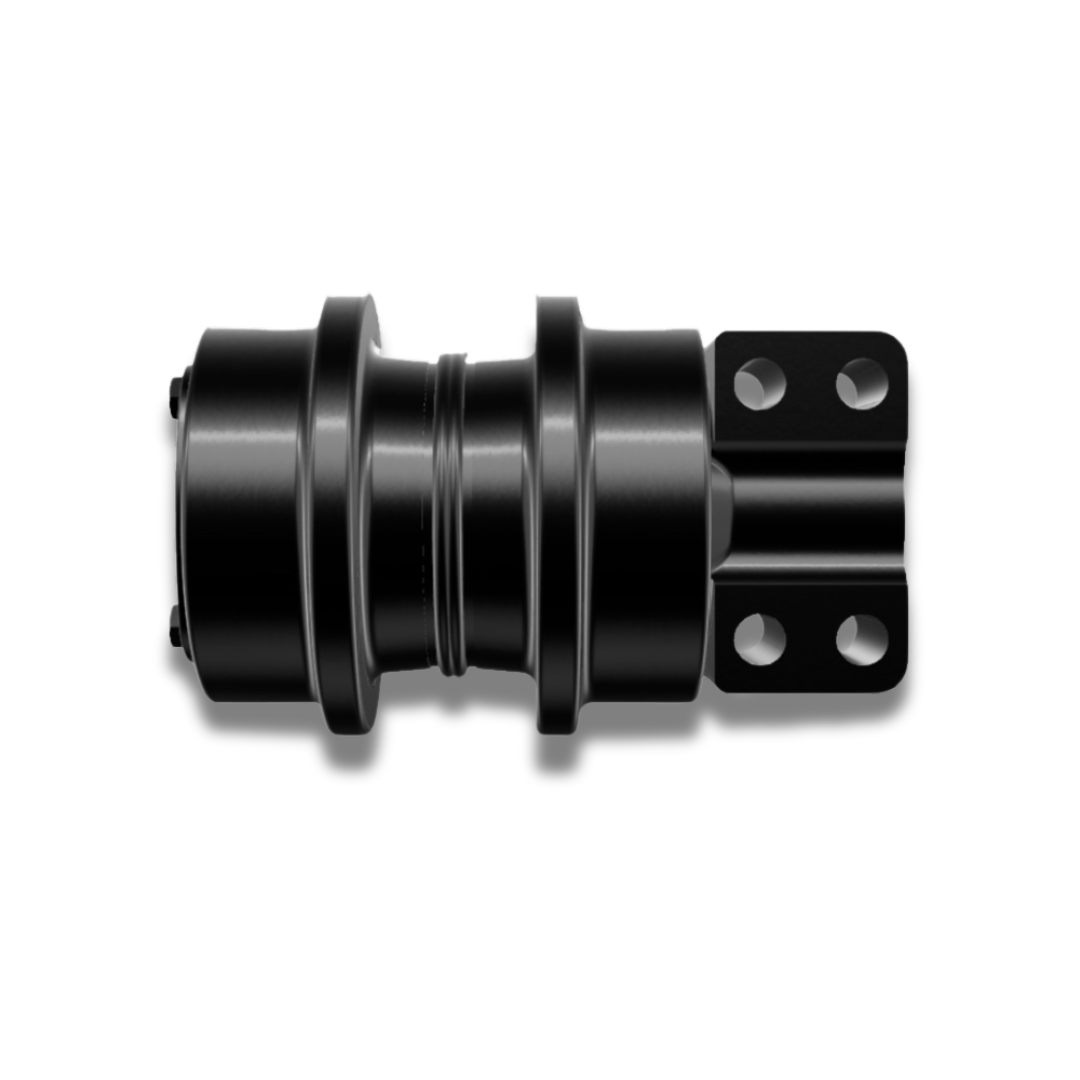

Track Roller Oil Stain vs. External Hydraulic Leak: Tracing the First Wet Point

Browse track roller product information.

Posted on October 16, 2026 by John White

Oil on a track roller doesn't prove the roller is leaking. Hydraulic fluid travels, so a wet roller can be catching runoff from a hose or fitting above it, or oil flung from another roller. Clean the area, then document where fresh wetness first reappears and the path it takes. That trace shows where a source is more likely to be, but a stain alone can't tell you which fluid it is or whether anything has failed inside.

For the general signs of track roller failure, see AFTparts' guide to leaks, heat and noise in track rollers. This article covers only how to separate a roller-seal source from an external one.

Why the first wet point may not be the source

Field-service guidance on hydraulic leaks stresses that the visible wet spot is often not where the fluid escapes. Ces Field Service says hydraulic fluid travels, and that a leak at a hose, cylinder or valve bank can run down a machine and collect well away from the failure point. Brennan Industries makes the same point about fittings: oil dripping from a fitting may come from higher up, so check the assembly and hose above before assuming the fitting. BioBlend describes a hose that may be split along its length with fluid running down to drip at the connection.

For rollers, Origin Machinery adds two cautions. A leaking roller higher on the frame can drip or fling oil onto the ones below it, and contamination washed from the track frame can look like a leak at a seal. It also warns of the reverse: a roller with no external leak can still have lost its oil, because some failures vent internally past the shaft. So a stain neither proves a seal failure nor, when absent, rules one out.

Tracing the first wet point

Use a worksheet organized by origin, path, reappearance and affected interface. Complete it with the machine stopped and secured under its procedure, from safe positions outside every pinch zone.

Column	What to record	What it does not establish
Origin	The highest wet point you can see, and whether it is at the roller seal area, a hose, a fitting, a cylinder or another place	That it is the source, since fluid may come from higher up
Path	The route from that point down to the roller: runs along the hose, over the frame, onto the roller shell, or drips from above	What the fluid is
Reappearance	Whether fresh wetness returns after the area is cleaned and dried, where it first shows, and how soon after the machine has been run	Why it returned
Affected interface	Which roller, which end, the seal face, the flange, the frame, or a hose or fitting	Whether the seal or any component has failed
Observer and conditions	Who observed it, time, whether the machine was run and by whom, ground and weather	Nothing about cause

Ces Field Service advises cleaning the suspected area and drying it thoroughly, then starting at the highest visible wet point and working upward toward the pressure source. It adds that a bright, clean trail is more useful than a machine covered in old residue. Origin Machinery says that for a roller, a genuine seal leak reappears at the seal face within a short run, and that oil which does not reappear was contamination from elsewhere.

Running the machine to see whether wetness returns belongs to qualified personnel under the machine's procedure and site controls. The record states who did it, and what the observer saw from a safe position. The record-taker shouldn't operate the machine or approach the track while it moves.

What fluid appearance can and can't say

Appearance is a weak identifier. Sources describe hydraulic fluid as amber, red or clear depending on type, and one says a stain smelling of petroleum indicates a hydraulic leak. Those are general descriptions and not a test. Colour and smell don't identify a particular fluid on a particular machine, and don't show where it came from. Record colour, consistency, whether it is wet, tacky or dusty, and whether dirt is stuck to it. FullStack Mechanics distinguishes a weep, where the metal is damp and dust sticks to it, from a drip and a spray, which gives you a way to describe activity without naming the fluid.

Origin Machinery's stages for roller leaks, from a thin film or dark staining at the seal to visible oil tracking down the shell, are a descriptive vocabulary from one source. Use them as descriptions of what is visible, not as a diagnosis or a prediction.

Safety when tracing

Never use bare hands to look for a hydraulic leak. Iron Horse and FullStack Mechanics both warn against it, and a pinhole leak can spray at high pressure. Tracing a spray by running the machine is a qualified-personnel task. If wetness is spraying, or you can't tell whether it is, the machine should stay out of service until a qualified person has assessed it.

Draining, resealing and replacing parts are service steps that follow the manufacturer's procedure. They are not part of this record.

Assembling the fitment request

If the trace points to a roller and a part search follows, do not approve a replacement from a partial match. Record:

The machine's make, model and serial number, and which roller position is affected, by side and number.
Photographs of the roller's both ends, flange, shell and any markings on the roller body.
The worksheet entries and photographs of the first wet point and its path.
What was and wasn't established: a seal-area source, an external source, or unresolved.
Any measurements taken under the machine's procedure, with the method.

Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Track Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits.
