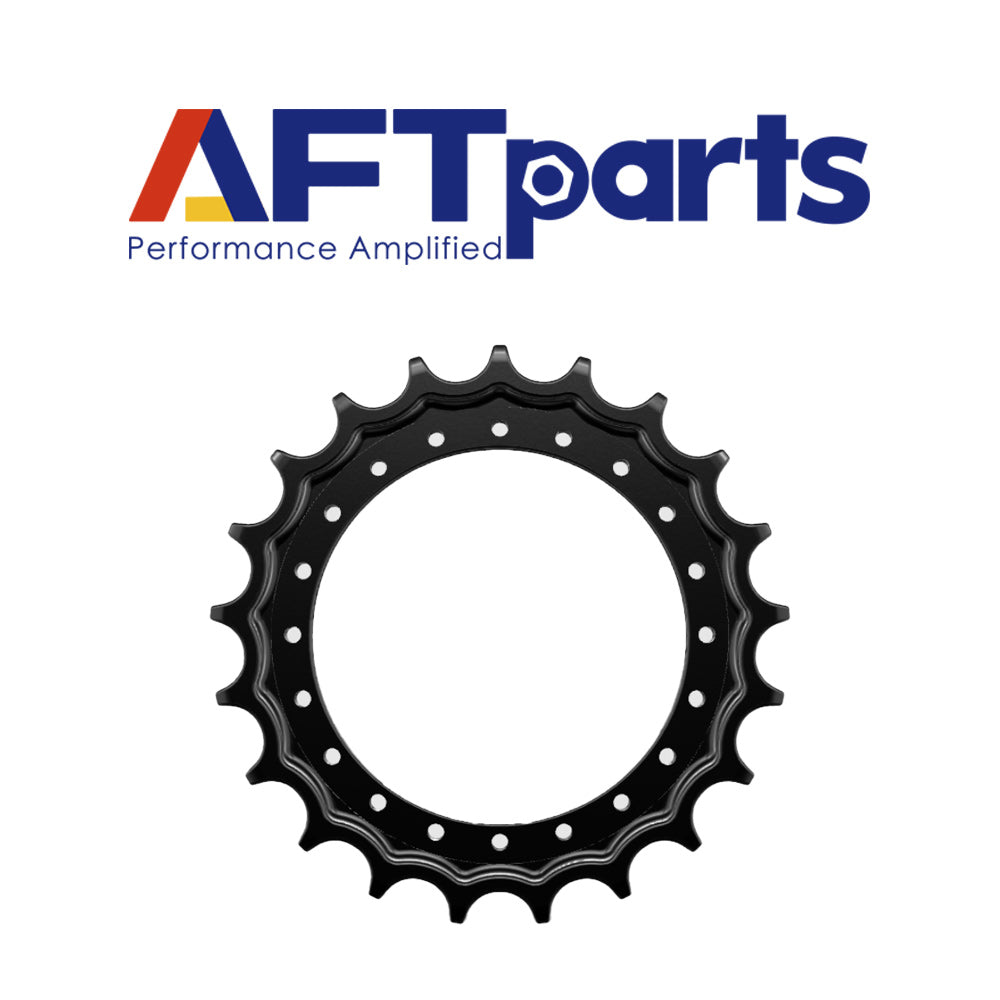

Welded Sprocket Teeth on a Used Excavator: What to Record and What Needs Qualified Assessment

Added material on sprocket teeth is a condition to locate and document, not one an inspector can classify as serviceable or defective. Record where the added material sits relative to the tooth profile, the roots and the mounting structure, and record what could not be seen. Whether the modification is acceptable, and what it means for the machine's value, depends on repair documentation and a qualified assessment.

Reading added material against the tooth profile

Sprocket wear is normally read from tooth shape. Fj-ysm describes "shark-fin" as a common visual description for thin or hooked teeth, and says it is a warning sign, not a universal technical standard. Design World, writing about industrial chain sprockets, lists wear on one side of the sprocket plate as usually indicating misalignment, and lists scratches, galls, grooves and hooked shapes among the visible changes to watch for. These describe worn teeth. Added material changes the picture, because a rebuilt tooth can look intact while its profile, root or attachment differs from the original.

To say anything about the original profile you need a reference: the manufacturer's drawing or wear gauge, or the matching sprocket on the other side of the same machine. AFTparts' sprocket tooth wear guide covers reading the tooth profile with a hook gauge against the limit. Without a reference, the entry for profile is "unknown."

Global Engineering Spares notes that segmented sprockets use individual tooth segments on the final drive hub, so the construction type changes where you look. Record which type the machine has.

Baseline photographs and notes

Take these before any cleaning, from safe positions outside every pinch zone. Do not run, lift or block the machine, rotate the track or sprocket, release tension or remove guards to obtain them.

• Photograph the nameplate and record the manufacturer, model, serial number and hour meter reading.

• Photograph each side's sprocket from the same angle and distance.

• Number the visible teeth from a fixed reference such as a bolt or casting feature, and state that reference.

• Take close photographs of each modified tooth, from the side and the working face, with a scale reference placed only where it is safe.

• Photograph roots, mounting bolts and any leakage or staining near the final drive. BAS World's used-excavator checklist includes leaks around the final drives among its inspection points.

• Record the date, time, lighting, and whether the area was coated or recently cleaned.

• Record what could not be seen, such as teeth hidden behind the track.

Fields for the sprocket record

A tooth is "unchanged" only if the same tooth was photographed or measured under comparable conditions at two stages. Without an earlier record, the first entry is the baseline, and its status for change is "unknown."

Documentation and assessment that come first

Treat the modification as unassessed until the following are on file.

• Service and repair records. A used-excavator guide from Cat-UE-LSHM calls reviewing the maintenance and service records one of the most reliable ways to uncover hidden damage, and notes that gaps or missing records can raise the risk of undisclosed issues. Ask for records covering when the sprocket work was done, at what hour reading, why, and by whom. Record whether records were supplied and whether they describe the sprocket.

• Manufacturer verification. The same guide suggests checking the serial number with the manufacturer or an authorized dealer to verify production year, original specifications and whether the machine has had major repairs. Ask the manufacturer or dealer whether build-up welding on sprocket teeth is permitted for this model, and under what conditions. That guidance is the deciding document. Until it is on file, acceptability is unestablished.

• Qualified assessment. A qualified inspector should assess the added material, the profile and root, and the mounting, under the machine's own procedure.

• The chain. Kensetsu Buhin says replacing sprocket and chain together is generally the safer choice when both show meaningful wear or the chain's operating pitch has increased. AFTparts' guide to sprocket and chain matching says an elongated chain hooks the teeth and wears the sprocket early. A modified sprocket should be assessed together with the chain it drives.

• Valuation. Don't value the machine on the weld alone. Its effect on value depends on the documentation and assessment above.

Closing the record

The record is complete when someone who wasn't there can tell where added material is visible, which teeth and roots it touches, what was present at handover, what changed, and what remains unassigned. Don't record the modification as "serviceable" or "defective." Record "modification present; serviceability not assessed," and add the assessor's name, date and finding if one is obtained.

Avoid wording that assigns motive or cause, such as "patched up to sell" or "caused by overuse." The record states what is visible and what is unknown. Responsibility and value are decisions for the parties and a qualified assessor.

If replacement research follows, begin with the machine's make, model and serial number, the part number if legible, the chain specification and the mounting details shown in the photographs, and treat it as a separate task.

References

• Excavator Sprocket Wear Signs: Inspection and Replacement Planning Guide (Fj-ysm)

• A Smarter Approach to Identifying Sprocket Wear (Design World)

• Buying a Used Excavator? 15 Inspection Points (BAS World)

• How to Check for Hidden Damage on a Used Excavator Before Buying (Cat-UE-LSHM)

• Why Sprocket Pitch Matching Determines Track Chain Life (Kensetsu Buhin)

• Sprocket (Global Engineering Spares)
