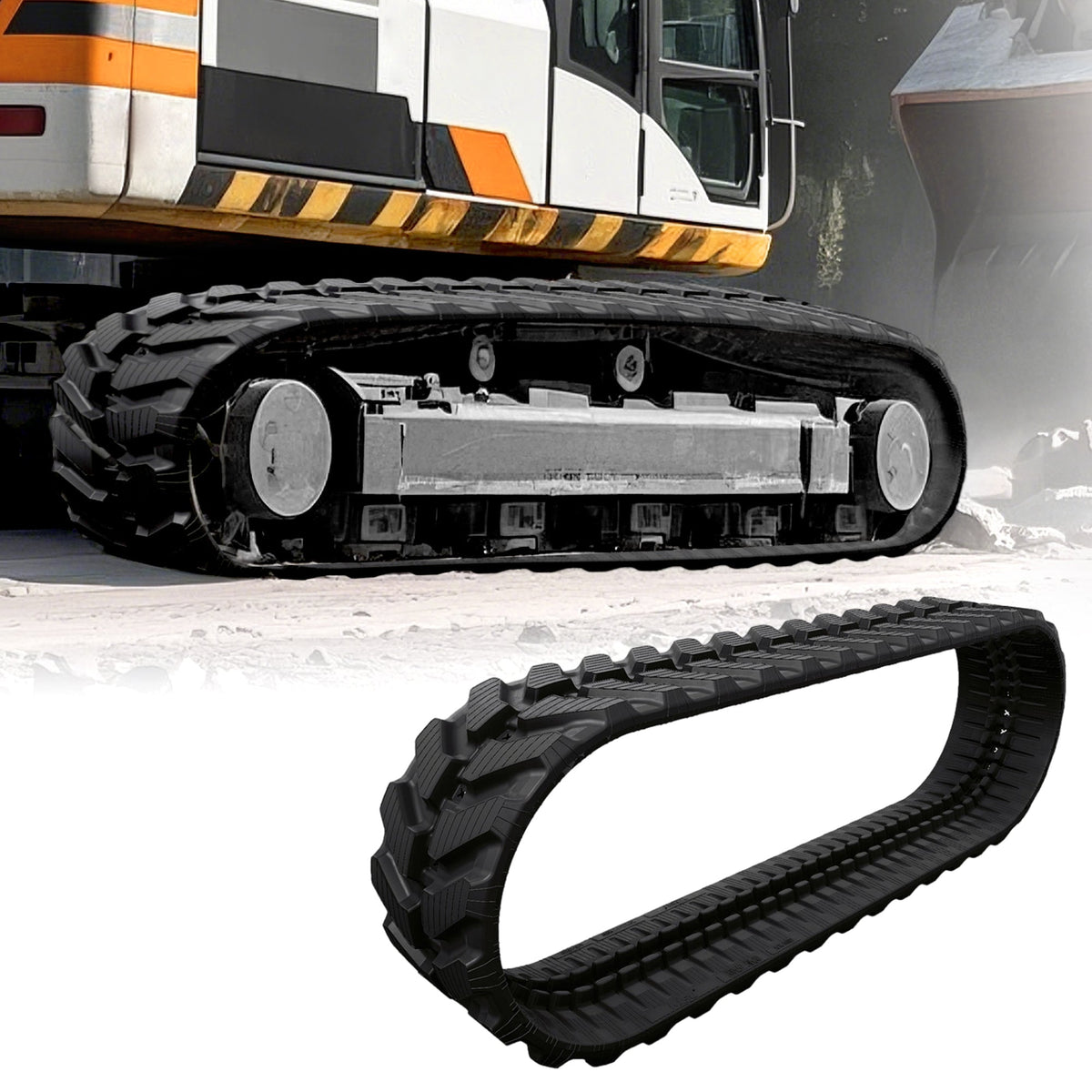

Used Excavator Rubber Tracks and the Steel Undercarriage Behind Them: Keeping Two Records Apart

Browse rubber track product information.

Posted on October 12, 2026 by John White

Rubber tracks on a used excavator tell you about the rubber. They don't tell you the condition of the sprockets, idlers, rollers, frame and final drives that carry them. Record the track and the steel components as two separate sets of evidence, and mark any steel component that couldn't be seen with the tracks fitted as unknown, not as sound.

Which kind of rubber track is it?

"Rubber tracks" on an excavator can mean two different arrangements, and what is covered differs.

A continuous rubber belt. TVH's guidance on rubber tracks notes that cracks and cuts can lead to corrosion of the steel inside, and lists signs such as tracks slipping over the sprocket, which it says can mean either that the tracks have stretched or that the sprockets are worn. On a belt-type machine the belt sits over the sprocket, idler and rollers.
Rubber pads on steel track. TVH describes pads as track shoe covers, fitted in several ways. West-Trak describes bolt-on pads as secured to steel shoes that have been pre-drilled, and chain-on pads as fixed directly to the track chain in place of the steel shoe. So pads can sit over steel shoes or replace them, and the steel chain beneath stays part of the undercarriage either way.

Record which arrangement the machine has, with photographs, because it decides what the rubber covers and which steel parts you need to account for.

Steel components that stay relevant

Component	What can be recorded with tracks fitted	What may need qualified inspection under the machine's procedure
Drive sprocket	Visible teeth, and track behaviour reported at the sprocket	Tooth condition behind the belt or pads. One guide lists sharp, hooked teeth as a sign of wear
Front idler	Visible position and condition	Wear and flange condition hidden by the track
Top and bottom rollers	Visible condition, leaks, packed material	Wear and flange condition where the belt covers them
Track frame and guides	Visible cracks, distortion, damage	Surfaces the track covers
Final drive and travel motor	Leaks around the gearbox cover, case drain line and final drives, which a track-replacement guide from Track-Motor lists as checks	Seal and bearing condition
Steel shoes, chain and bolts (pad configurations)	Visible bolts, cracks around mounting points, wear across each row	Chain and shoe condition beneath the pads. Trackpads notes the steel grouser plate and chain should be inspected before pads are fitted
Alignment evidence	Uneven wear between the two sides. Track-Motor says uneven wear on one side can indicate an alignment issue or an imbalance in the final drive or speed control	The cause

A guide on inspecting used excavators says to measure the wear on rails, sprockets, carrier rollers and guide rollers with a track measuring gauge and compare the readings with the new and limit wear dimensions in the service manual or from an OEM dealer. TVH adds that with the track removed the undercarriage can be inspected, and the machine's manual says how much wear is acceptable. Those measurements and comparisons belong to qualified personnel working under the machine's procedure and site controls.

Keeping belt evidence apart from steel evidence

Use separate entries and don't let one stand in for the other.

Belt or pad entries cover what is visible on the rubber: cuts, cracks, missing tread blocks, exposed steel cords or torn lugs, which Track-Motor lists as items to check on rubber tracks, and for pads, chunking, loose bolts or exposed steel.
Steel component entries cover each sprocket, idler, roller, frame interface and final drive separately, by side and position, with their own status.
A good belt is not a finding about the steel. Recently fitted or visibly healthy tracks say nothing about the components beneath. Record when the tracks were fitted and by whom, if documented.
A worn steel component is not a finding about the belt.

Field	Entry	Purpose
Component and side	Belt, pad, sprocket, idler, roller number, frame, final drive; left or right	Keeps belt and steel entries apart
Date and time	When each photograph or reading was taken	Orders the record
Stage	At handover, during the period, or after an event	Separates what was present from what changed
Visibility	Seen with tracks fitted, or not visible	Shows what could and couldn't be assessed
Scale and method	Scale, tool, reference values and procedure, or "not measured"	Makes the entry repeatable
Observation	What is visible, in plain terms	Keeps the entry factual
Status	Changed, unchanged or unknown	Avoids implying cause
Unresolved cause	Left open	Keeps assumptions out
Recorded by	Name, role and acknowledgment	Gives traceability

Take photographs from safe positions outside every pinch zone. Do not run, lift or block the machine, rotate the track, release tension or remove guards to obtain them.

Documentation and qualified follow-up

Paperwork helps put the visible condition in context. One used-excavator checklist advises getting the full service history, hour meter or ECM hours, make and model, serial number and ownership details, and cross-referencing hours with service records. Another says to match the serial number on the frame with the documents and check the service records, and a third advises confirming major component replacements and checking for gaps in maintenance. Record what was supplied, what wasn't, and whether any entry mentions the undercarriage or the tracks.

Ask a qualified technician to assess any steel component the record marks unknown, under the machine's procedure.

Closing the record

The record is complete when someone who wasn't there can tell what the belts or pads showed, what each steel component showed or couldn't show, what was present at handover, what changed, and what remains unassigned. A steel component that wasn't visible with the tracks fitted stays "unknown," and the record says why. Avoid wording that assigns motive or cause, such as "tracks fitted to cover wear." The entry is "tracks fitted; sprocket and idler surfaces not visible."

If the record identifies a component that needs replacement, Track-Motor advises checking track width and pitch before ordering a new rubber track, because a mismatch can cause poor alignment and premature wear. Start any part search from the machine's make, model and serial number and the photographs that identify the component.
