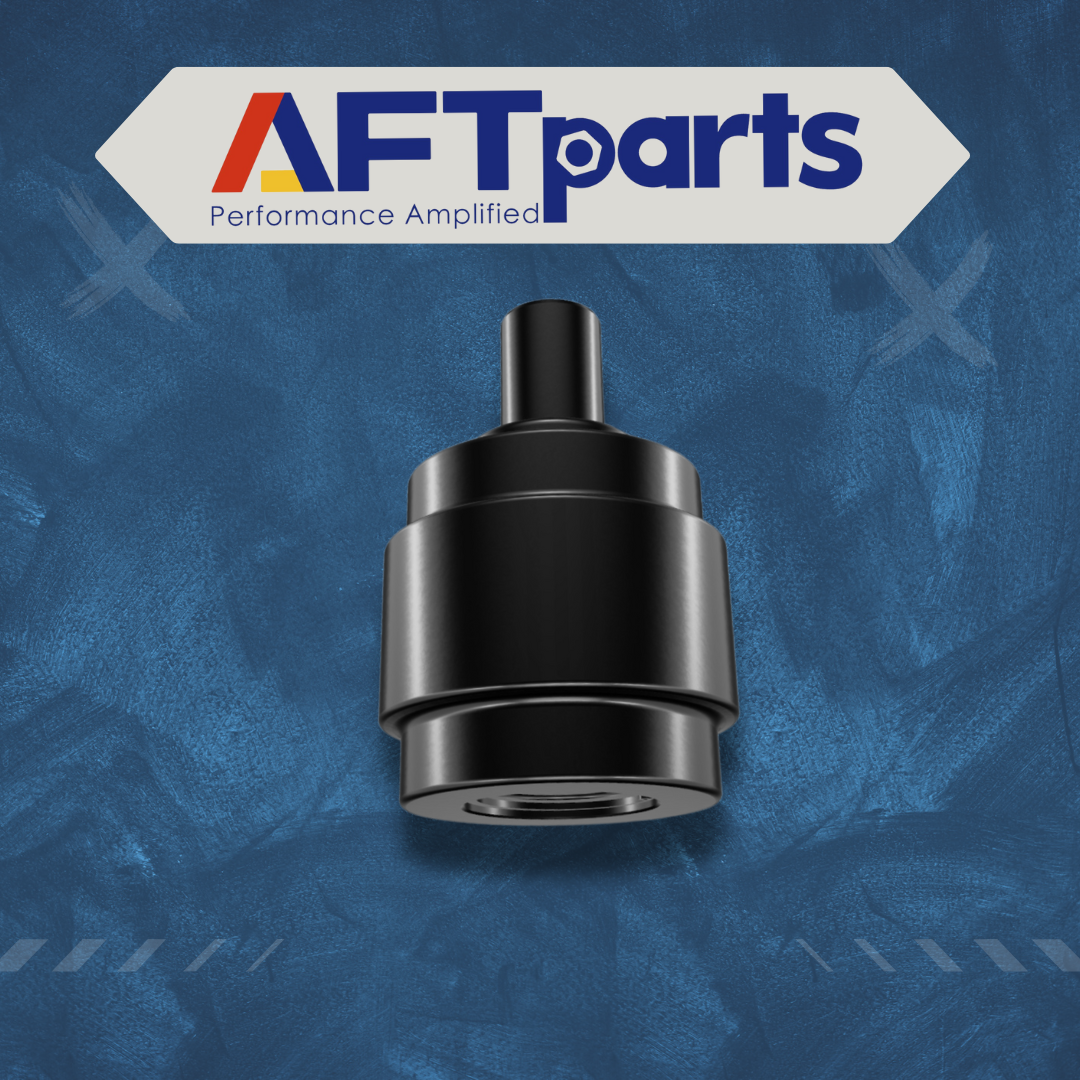

Carrier Roller Contact at One End Only: Skew, Tilt or Wear?

Browse carrier roller product information.

Posted on October 17, 2026 by John White

When a carrier roller touches the track at one end only, three explanations compete: the upper run is skewed, the roller or its bracket is tilted, or the shell has worn so that contact concentrates at one end. Marks on the roller, the links and neighbouring parts can narrow it down. None of the evidence here supports a cause, shim change or alignment value.

For general carrier roller wear and damage inspection, see AFTparts' guide to inspecting carrier rollers. This article covers only one-ended contact.

Three explanations to separate

Supplier guidance supports each branch. Kirby-Smith Machinery says upper waviness makes the track chain whip, which causes excessive wear on the idler and carrier roller, and that misalignment causes unnecessary wear on all undercarriage components. AFTparts' guide to one-sided wear on top rollers says bent mounting brackets, common after collisions, can shift roller alignment and force the track to rub on one side, with polished streaks on one flange as a visual sign. Kensetsu Buhin says that when bearings wear, the roller shell can shift slightly so that the track contacts flange edges at abnormal angles, and that a flat spot gives a non-circular tread.

Branch	What would support it	What would count against it	What it leaves open
Upper run skewed	Shiny, scuffed marks on the inside of links, flange wear on other rollers and the idler, marks on the sides of sprocket teeth, all in the same direction	Only this roller shows marks	The reason for the skew
Roller or bracket tilted	Marks concentrated on one flange, a bent or shifted bracket, a gap or mark at the mounting face, neighbouring rollers clean	Neighbouring rollers show the same direction of contact	Whether the tilt predates the contact
Shell profile worn	The shell's own contour differs end to end, with a step, taper or flat, and the worn zone sits at the contact end	The shell contour is even and the marks are only on the flange	Whether the wear caused the contact or followed it

Kirby-Smith says the quickest way to detect an alignment problem is to look for anything shiny that should not normally be shiny, and lists scuffed, shiny link insides, worn roller and idler flanges and sprocket sides touching links as indicators that the alignment system needs attention. That points at the track system, so check neighbouring parts before you blame a single roller.

Mapping both sides of the contact

Record from safe positions outside every pinch zone with the machine stopped and secured under its procedure. Don't run, lift or block the machine, release tension or reach near the track to feel for marks.

Record	Roller side	Chain side
Marks	Polish, scoring or step on the shell and flanges, noting which end	Shiny or scuffed marks on the link rail and link sides, and which side
Position	Which end of the shell is marked, relative to the machine's inside or outside	Where along the upper run the marks sit
Spread	The same views of the other carrier rollers on that side and the opposite side	Whether the idler, sprocket and bottom rollers show marks in the same direction
Mounting	Visible bracket shape, gaps or marks around the mounting face	Not applicable
Flange type	Single or double flange, as marked on the roller	Not applicable

Note which of the marks you can't see. An unrecorded area is an open question and not a clean one.

Unloaded and operating observations

Two sets of observations are useful, and they are different. Unloaded means the machine is parked and secured: the marks above, the shape of the roller and bracket, hardware, and the position of the chain on the roller, photographed from several safe angles. Operating means what the operator and qualified personnel see in service, from outside the hazard zone and under site controls: which end of the shell the chain runs against, whether the contact changes with direction, turning or slope, and whether the upper run looks to swing or sag. AFTparts' roller inspection guide refers to observing track motion for straight tracking, which belongs to qualified personnel and the machine's procedure.

If the contact is there only when operating, the track position and load close the clearance. If it also shows parked, the geometry is likely fixed. That reading is a working inference and not a diagnosis. Several suppliers tie one-sided wear to unequal tension, slopes and turning habits, so record what the machine was doing. Don't record or quote a tension or alignment value from any article, and don't adjust shims, tension or alignment. Those belong to the machine manufacturer's documentation and qualified service.

Choosing the next action

Hold the machine and ask qualified service to assess when contact is concentrated at one end and marks show on several parts, when a bracket looks bent, when a roller doesn't turn freely, when the upper run sags or whips, or when you can't tell which branch applies. Don't reposition the roller, add spacers, grind the shell or retension the track.

If service identifies a roller for replacement, don't approve a part from a partial match. Provide the machine's make, model and serial number, the roller's side and position, whether it is single or double flange, photographs of both ends, the flanges, the shell and the mounting with any markings, your contact map and what remains unresolved. Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Carrier Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits, and a new roller won't correct a skewed run or tilted bracket.
