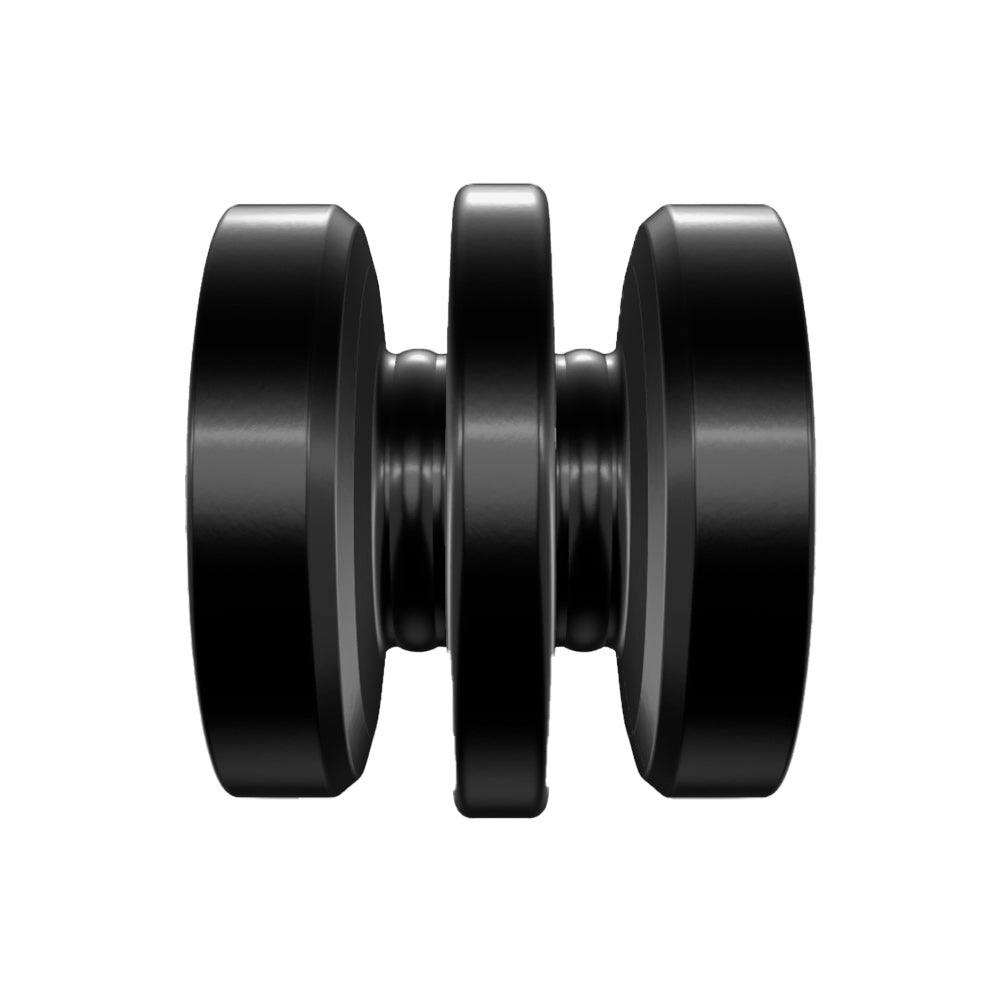

Track Roller Shiny Band on One Flange: What It Does and Doesn't Show

Browse track roller product information.

Posted on October 16, 2026 by John White

A shiny band on one roller flange shows that something has rubbed or slid against it. It doesn't say what, or why. The band's width, how far around the flange it runs, which side it is on and what marks match it on neighbouring parts are what separate guide contact, lateral track position and an adjacent component. Compare those features before anyone calls it misalignment.

For general roller wear and damage inspection, see AFTparts' guide to inspecting excavator track rollers. This article covers only a one-sided polished band.

What a polished band can and can't tell you

Flange contact isn't automatically a fault. Kensetsu Buhin describes normal flange contact as occasional and light, and says abnormal wear begins when the chain persistently runs against one flange. A band is therefore a record of contact, and the question is whether the contact is persistent and where it comes from.

Several sources list why one side may wear more. DOZCO says flange-side wear can come from misalignment or side-loading that forces the chain to rub against the flange, and traces premature wear in many cases to bent track frames, worn mounting surfaces, misaligned idler yokes, or sprocket tilt or lateral offset. A parts guide from Drilling Track Parts lists the causes of offset tread wear and flange side wear as misalignment of the roller frame, rolling and sliding contact with the sides of the link rail, inadequate track guidance, an eccentric loading point from the application, and improper chains or rollers. Julimachinery adds that a bent frame or misaligned idler can force the chain to ride against the roller flanges, and lists "bright, polished streaks on the sides of components where they shouldn't be rubbing" among the signs to look for.

Those are possible explanations from supplier guidance. None identifies the cause on your machine, and several can occur together.

Comparing the band

Do any inspection from safe positions outside every pinch zone with the machine stopped and secured under its procedure. Don't run, lift or block the machine, rotate the roller or track, release tension or remove guards to see more.

Compare	What to record	Why it matters
Width	How wide the band is, photographed with a scale reference only where one can be placed safely	A narrow, crisp band and a broad one may reflect different contact conditions
Circumference	Whether the band runs fully around the flange or only part of it	A partial band may mean contact tied to roller position or intermittent contact, but that is an inference to test
Side	Inboard or outboard relative to the machine centreline, and left or right track	Julimachinery asks whether wear is greater on the inboard or outboard side
Height on the flange	Whether the band is at the flange tip, mid-height or near its root	DOZCO says top-flange wear can be associated with chain pushed upward by excessive tension, which is a source's statement and not a finding
Mating marks	Polishing or scoring on the facing link sides, pin boss, rail, guard or track frame	A band with a matching mark on the part it faces is stronger evidence of what it touched
Neighbours	The same flange on adjacent rollers, and on the opposite side	Shows whether the band is local or part of a pattern
Track position	Whether the track sits off-centre relative to the frame and rollers	Lateral position is a separate observation from the band

Reading the pattern

Observation	What it may show	What it leaves open
Band on the same flange side across several rollers on one track, with matching polish on link sides	Persistent side contact along that side of the chain	Whether the cause is the frame, an idler, a sprocket, the chain or the application
Band on one roller only	A local condition at that roller, such as its mounting or its own wear	Whether neighbours are affected where they can't be seen
Band matched by polishing on a guard or the track frame	Contact with that component	Whether the guard or frame is the cause or only the contact point
Band on both sides of the roller	Contact on both flanges at different times	That the track is misaligned
Band present on a roller that is also flat-spotted, wet or hot	More than one condition may be present	Which came first
Band alongside pin boss wear on chain links	Contact between the roller flange and link pin boss	Astrak says pin boss side wear appearing before the links reach full wear is a specific signal to replace the rollers, which is a supplier's guidance and not a finding for your machine

Julimachinery says technicians can use a straight edge or string line to check alignment of rollers against each other and the frame, and can measure the distance between track frames at the front and rear to reveal a bent or toed frame. These are checks for qualified service under the machine's procedure, not steps for the record-taker.

Choosing the next action

Record, don't diagnose. When the band is faint, local and without matching marks, repeat the photographs at the same views at a later time and see whether it spreads. Escalate to qualified service when the band recurs across rollers, when matching marks appear on guards, frame or chain, when the track sits off-centre, or when the band is accompanied by flat spotting, leakage, heat, noise or loose hardware. Don't adjust track tension or alignment to see whether the band changes.

Preparing a fitment request

If service identifies a roller for replacement, don't approve a part from a partial match. Provide the machine's make, model and serial number, the roller's side and position, photographs of both ends, the flange and the shell with any markings, your comparison table entries and what remains unresolved. Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Track Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits.
