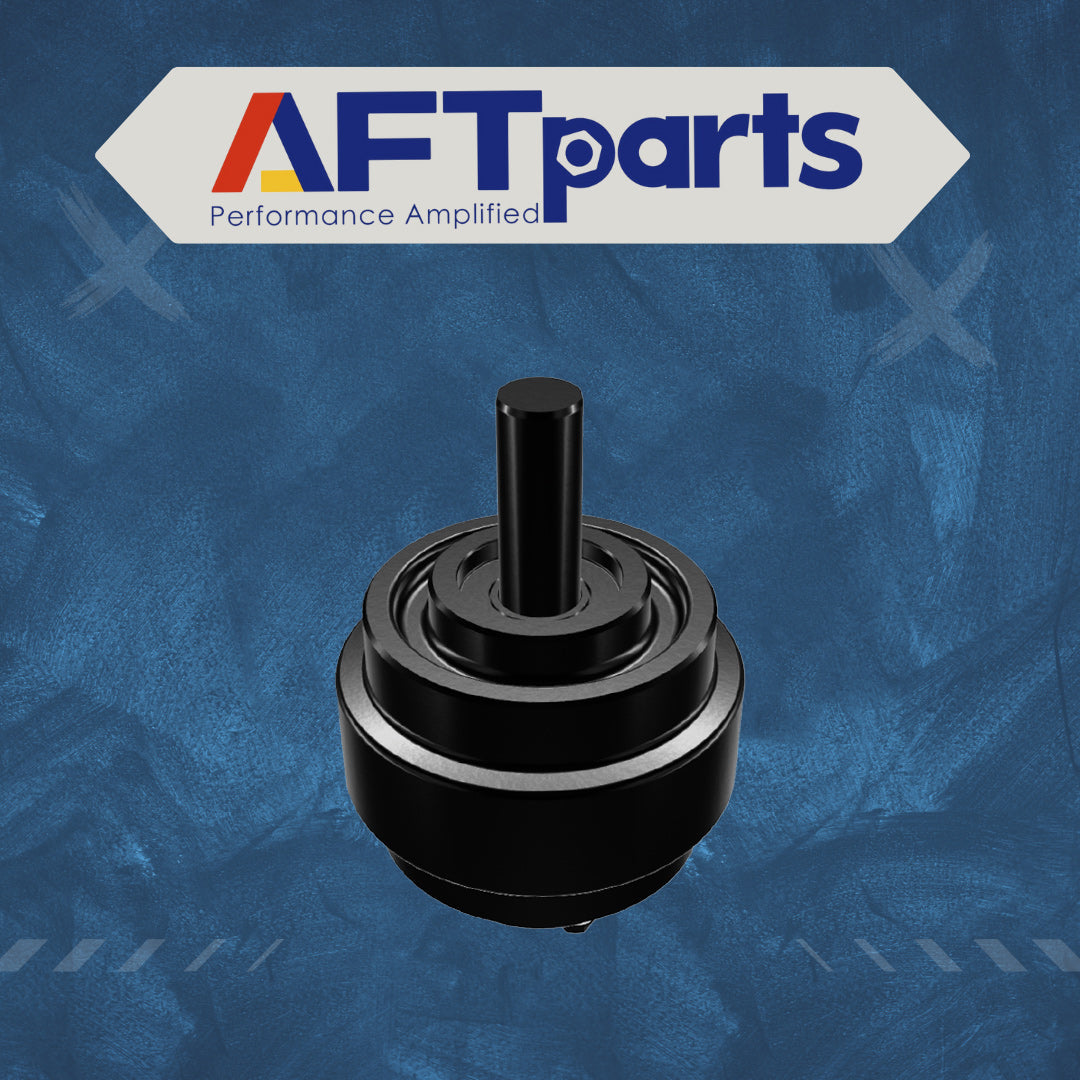

Carrier Roller Not Touching the Upper Track Run: What to Compare

Browse carrier roller product information.

Posted on October 19, 2026 by John White

A carrier roller that isn't touching the upper track run is an observation, not yet a fault. Whether it matters depends on whether the gap is constant, appears only under certain loads, or shows at one track position, and on what the matching marks on roller, chain and frame say. This article gives no sag or tension values, because the machine manufacturer's documentation governs them.

For general carrier roller wear and damage inspection, see AFTparts' guide to inspecting carrier rollers. This article covers only the question of contact with the upper run.

Is the lack of contact a problem?

Supplier descriptions frame the roller's job as supporting or guiding the upper run so it doesn't sag against the frame. Kensetsu Buhin says carrier rollers sit above the track frame and support the return run, carry a lighter load than bottom rollers, and are sensitive to track tension, chain condition and alignment, and that an excessively loose track can sag, rub or climb out of its path. I found no source stating that the chain must touch the roller at every moment, so a gap seen once doesn't establish a defect. The manufacturer's documentation defines the intended relationship.

Three patterns are worth separating:

Pattern	What it would look like	What it leaves open
Constant	No contact marks on the roller tread, in every view and on repeated checks	Whether the roller is too low to meet the chain, the chain is riding high, or the roller never needed to touch
Load-dependent	Contact shows only after travel, turning or slopes, or changes with direction	Which load closes the gap, since tension, ground and chain condition all vary
Position-specific	Contact is absent in one part of the run and present elsewhere	Whether the chain, roller or frame varies from place to place

Reading the two sides of the contact

Record from safe positions outside every pinch zone with the machine stopped and secured under its procedure. Don't run, lift or block the machine, release tension, remove guards or reach near the track.

On the roller side, note whether the tread carries a polished running band, whether the flanges show marks and on which side, and whether the tread is clean or rusty. A tread with a worn band shows it has met the chain. A clean, untouched tread shows only that it hasn't recently.

On the chain and frame side, note polish on link rails where the roller would meet them, and polish on the top edge of the frame. AFTparts' guide to track sag describes sag as the droop between the carrier roller and idler and suggests looking down from above the track frame to check whether track shoes are rubbing or polishing the frame's top edge. The same guide says a roller that drags, squeaks or stays still while the track moves is seized, and that the tensioner should be evaluated only after the carrier roller. That guide describes the roller as the first suspect for frame rub. Here, frame polish plus an untouched roller tread suggests the chain is passing it by.

Kensetsu Buhin adds that a seized carrier roller reshapes how the chain articulates and that links failing early often show wear matching one roller's position. AFTparts' guide to wrong-size carrier rollers says a roller worn down significantly can let the track rub on the bracket or frame instead. Both roller and chain wear change the relative height, so neither can be read alone.

Evidence to compare without a specification

Compare like with like. Photograph each carrier roller and the upper run on both sides from the same safe position, with the machine on level ground and in the same stance, and note what the machine did beforehand. Record:

Where the upper run sags, and whether it looks the same on the opposite side.
The roller's height relative to the frame and to its neighbours.
Roller identity: size, flange type and markings. AFTparts' fitment guide treats a wrong-size carrier roller as a cause of wear patterns.
Bracket and mounting appearance, and any recent replacement of roller, chain, shoes or bracket.
What the operator reports and what hasn't been observed.

Published sag figures vary widely: one source gives 1 to 2 inches, another a percentage, and another 4 to 6 inches. That spread is the reason not to use any of them. Measuring sag, and releasing or adjusting tension, involve stored energy in the adjuster and belong to qualified personnel under the manufacturer's procedure.

Choosing the next action

Hold the machine and ask qualified service to assess when the upper run rubs the frame, the roller doesn't turn, links show wear matching a roller's position, or the gap changes with load or position. Don't adjust tension, add spacers, reposition the roller or replace parts on appearance alone.

If service identifies a roller for replacement, don't approve a part from a partial match. Provide the machine's make, model and serial number, the roller's side and position, photographs of both ends, flanges, tread and mounting with any markings, your contact map and what remains unresolved. Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Carrier Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits, and a new roller won't correct the tension or chain condition.
