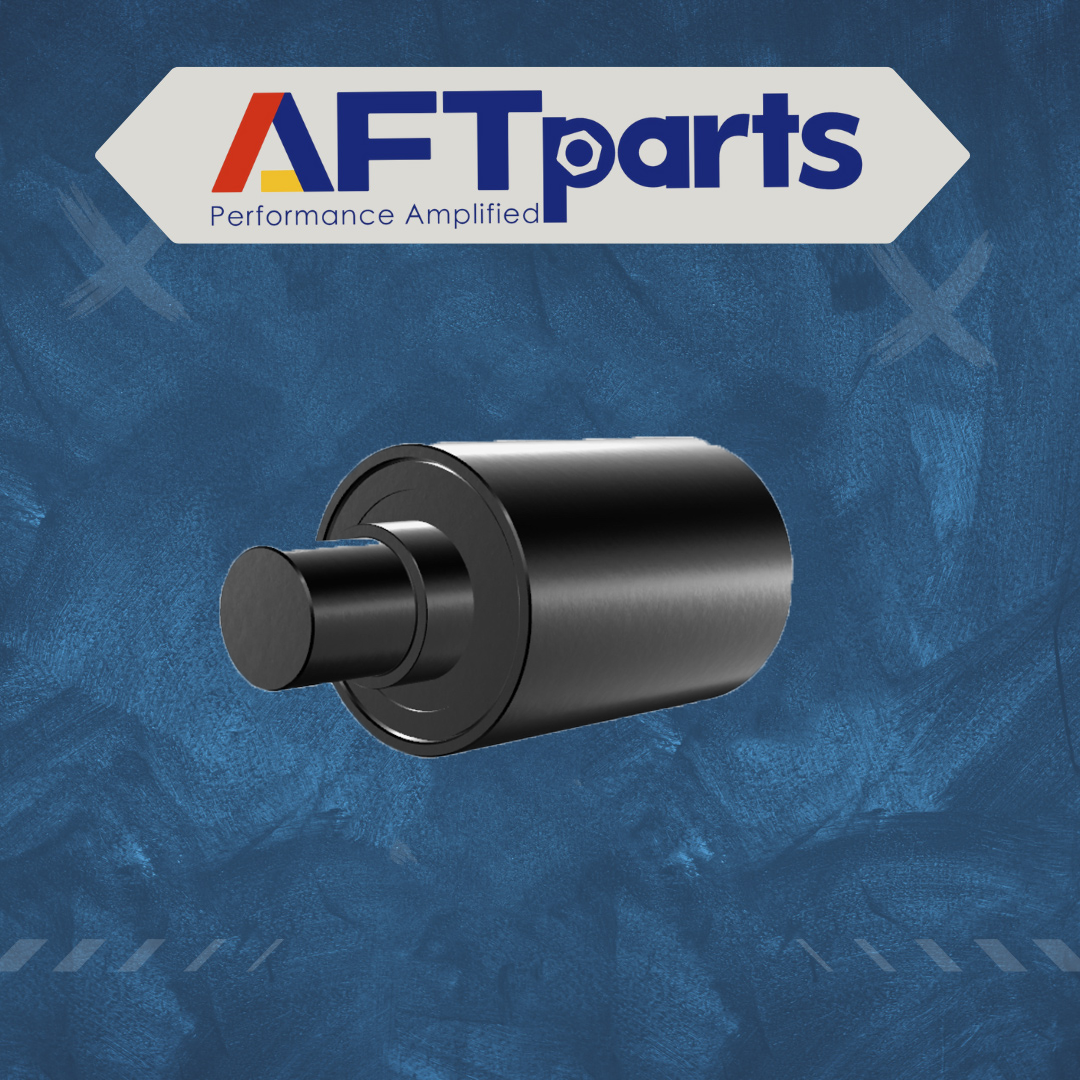

Carrier Roller Debris Wrapped Around Axle: Record, Don't Reach

Browse carrier roller product information.

Posted on October 22, 2026 by John White

Material wrapped around a carrier roller axle is an observation about what is around the roller. It doesn't show that the debris stopped the roller, damaged a seal or hid a crack. Record what the material is, where it entered and which interfaces it covers, then leave removal to qualified service under the machine's isolation procedure. Nobody should reach in or cut the material to look closer.

For general carrier roller wear and damage inspection, see AFTparts' guide to inspecting carrier rollers. This article covers only wrapped debris.

Mapping the material path

Record from a safe position outside every pinch zone, with the machine stopped and secured under its procedure. Do not run, lift or block the machine, release tension, remove guards or touch the material.

Zone	What to record	Why it matters
The material	Type if identifiable, such as vegetation, wire, rope, strapping, rubber, mud, clay or ice, and how much	Mud and ice behave differently from wire or fibre, and an unknown material stays unknown
Entry path	Whether it came from the track side, from above or along the frame, and the direction of the wrap	Shows where it entered, not why
Shaft ends and shell junction	Whether the material reaches the gap where the shaft end meets the shell	Yamada describes a floating seal between the roller's outer shell and the shaft, so this junction is the interface to watch
Bracket and mounting	Whether it covers the bracket faces, bolts or frame edge	It can hide movement marks, cracks or loose hardware
Seal area	Any oil or grease visible through or around the material	Staining shows a leak was present, not when it began
Upper run	The chain above and beside the roller	Marks the no-access zone, since the chain moves over this roller

The aim is a location map: for each zone, note what you can see, what is obscured and what lies in a no-access zone. Anything hidden stays unknown.

Before and after cleaning

Photograph first, wide and close, from several angles. Material often shows what happened as well as hiding it, such as its direction, its tightness and where it is compressed.

After cleaning, qualified service can see what lay underneath. Bites Off Broadway's undercarriage cleaning guide says caked mud makes it hard to spot worn parts until a seal fails or a roller seizes, and advises inspecting after cleaning because that is when grease leaks, cracked housings or wear the mud covered become visible. NIT Education's operator guide lists leakage, damage and material that prevents free rotation as the things to watch on carrier rollers. Yamada adds that in winter, water at the floating seal can freeze and leave the seal in contact with ice, which can cause an oil spill when the machine moves.

Compare the two sets of photographs and note what changed. The comparison can show leakage, a cracked mount or a roller that still doesn't turn. It cannot show what the roller did before you arrived. Astrak, writing about final drives, says debris packed around a hub compromises face seals. That is a different component, so it is only an indication that packed material and seal condition are worth checking together.

The isolation and no-reach boundary

Wrapped material and a rotating shaft create an entanglement hazard on a machine whose chain also moves across the roller. The UK Health and Safety Executive lists failing to disconnect power before clearing blockages among the operator errors behind entanglement incidents, and says instructions must cover stopping the machinery before clearing blockages or maintaining it. WorkSafe Victoria says that where lockout is used, employees must account for stored energy and run-down time before starting work on the machine. The Canadian Centre for Occupational Health and Safety describes lockout as isolating energy sources and securing the isolating devices under an established procedure, and lists stored energy among the hazards to control.

A track system holds several energies at once, including the weight of the frame and the stored energy of the tensioner. Therefore:

Do not reach toward the roller, shaft or upper run to pull, cut or probe material.
Do not cut wrapped wire, rope or strapping, which can store tension and release it.
Do not run or move the track to loosen it.
Ask a qualified, authorized person to isolate the machine and apply the manufacturer's procedure and the employer's hazardous-energy program before any removal.

Choosing the next action

Hold the machine and ask qualified service to assess when material wraps the shaft ends, covers the seal or bracket, or comes with leakage, heat, a roller that won't turn or movement at the mounting. Give them the location map and the before-cleaning photographs. A machine that has been running with wrapped material should be treated as having an unverified roller until it is inspected.

If cleaning reveals an identifiable damaged roller, record the machine's make, model and serial number, the roller's side and position, photographs of both ends, the shell, the shaft ends and the mounting with any markings, and ask the seller to confirm in writing that the candidate suits that roller position. The AFTparts Carrier Rollers collection can then be used to find the relevant category and submit a fitment check. If cleaning reveals no damage, no part is needed.
