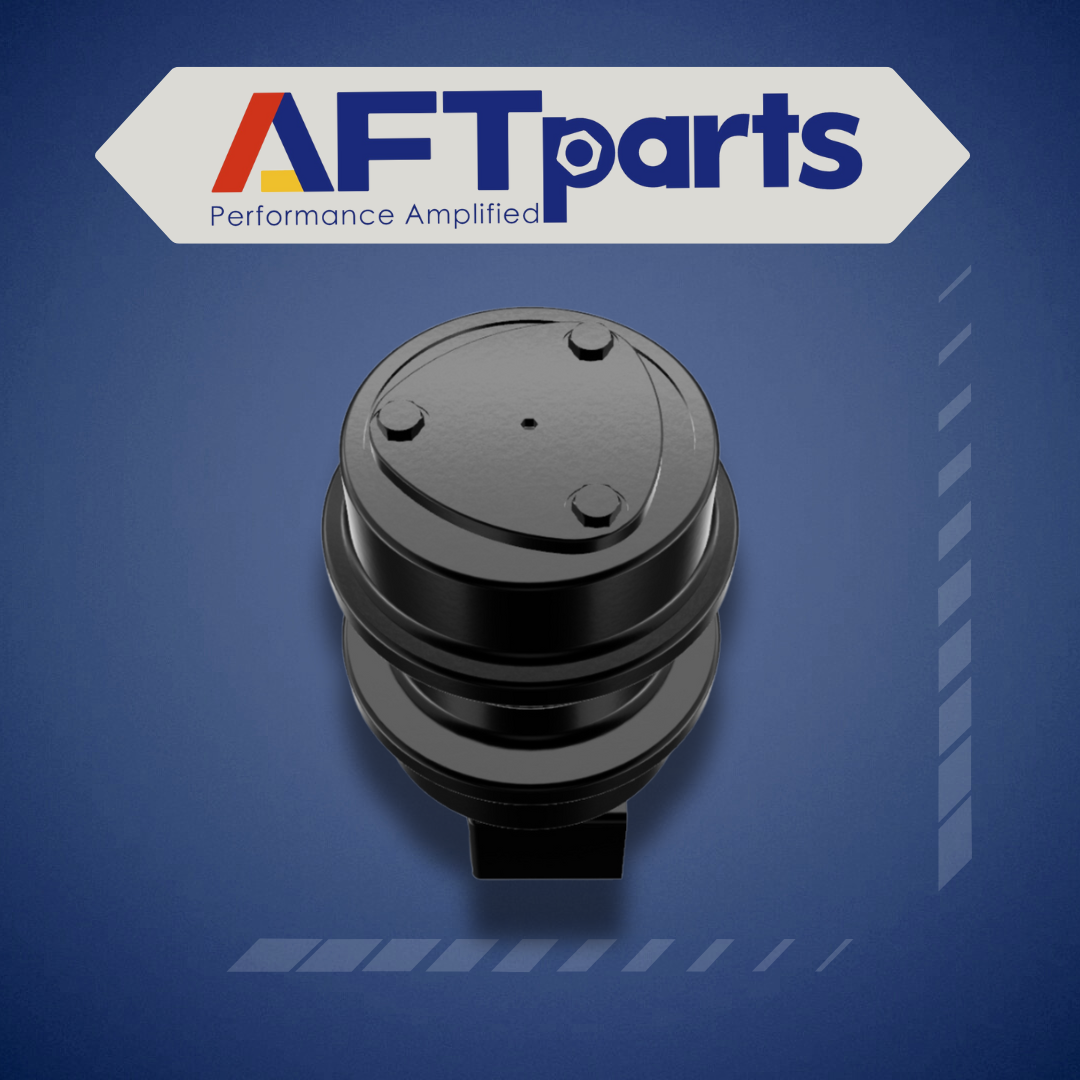

Track Roller Axle Moves but the Shell Doesn't: Identifying What Is Moving

When someone reports that the axle moves but the shell doesn't, the first job is to say which part is moving relative to which. The roller assembly may be shifting in its mounting, the shaft may be moving in its seat or inside the shell, or the shell may be failing to turn on a shaft that is otherwise in position. Each reading points in a different direction. None can be settled from a description, and freeing anything near a loaded track system belongs to qualified service under the machine's isolation procedure.

For general signs of a failing roller, see AFTparts' guide to leaks, heat and noise in track rollers. This article covers only the question of what is moving.

What "the axle moves" can mean

Supplier inspection guides point to different places depending on what moves. XMGT's roller inspection steps describe checking side-to-side movement of the roller and say excessive play means the bushing or shaft may be worn. Track Treads' guide on undercarriage hardware says missing or loose bolts can allow rollers, idlers and other components to move from their correct position, which can cause misalignment, place additional load on surrounding components and lead to accelerated wear or damage to the frame. Fj-ysm's guide on rollers that do not turn says a roller that doesn't rotate can drag against the track-chain rail, and that "not turning" is a symptom, not a complete diagnosis.

Those three sources describe three separate conditions, so the report needs to be sorted:

The last row is the one Fj-ysm describes. A shell that doesn't turn can be dragged along by the chain, and the shaft's apparent movement may come from the assembly shifting under that drag. Whether that is what happened is a question for qualified inspection.

What to record without touching

Take photographs from safe positions outside every pinch zone with the machine stopped and secured under its procedure. Do not run, lift or block the machine, rotate the roller or track, release tension, remove guards or reach near the track to test movement.

Track Treads advises looking for missing caps and plugs, loose bolts, polished contact marks around bolt heads, fresh rust trails, oil or grease leakage and visible movement around mounting points. It also advises comparing matching components on both sides, noting shiny wear marks, elongated holes and uneven gaps, and recording the exact location of missing hardware so repeat issues can be identified.

Record for each roller, by side and position:

• Hardware present, missing or damaged, and where.

• Marks, gaps or rust around the mounting, wide and close.

• Whether the shell shows a flat, polish or scoring, and any matching mark on the link or rail.

• Any wetness or grease near the ends.

• The same views of neighbouring rollers and the opposite side.

• What was reported by the operator, with times, and what has not been observed.

Several suppliers describe pushing or spinning a roller by hand to check for play, and one describes doing it with the track lifted. Those checks require lifting and hand contact near a loaded track system, so they aren't part of this record. They belong to qualified personnel working under the machine's procedure.

The isolation boundary

Before anyone tries to free a roller, the machine has to be isolated. The Canadian Centre for Occupational Health and Safety describes lockout as isolating energy from a machine and securing the energy-isolating device with a lock and tag under an established procedure, and refers to the Canadian standard CSA Z460 for the control of hazardous energy. It lists stored or residual energy among the hazards, including hydraulic and pneumatic energy, mechanical energy in compressed springs, and gravitational energy from parts that could fall or move, and notes that such energy must be controlled before work begins. An authorized person identifies the energy sources and the lockout devices to be used.

A track system carries several of these energies at once, including weight on the frame and stored energy in the tensioning system. So the order is fixed: record what is visible, stop work, and let qualified service apply the manufacturer's procedure and the employer's hazardous-energy program. Fj-ysm adds that full inspection or removal of a roller may require lifting, track release and stored-energy control, which is qualified service work.

Choosing the next action

Hold the machine and ask qualified service to assess when a roller isn't turning, when mounting hardware is missing or loose, when marks or gaps suggest movement at the mounting, when a flat or scoring is present, or when you can't tell which part is moving. Don't try to free a stuck roller, tighten hardware or adjust track tension. Missing hardware that recurs should be investigated for cause and not just replaced, as Track Treads advises.

Preparing a fitment request

If service identifies a roller or its hardware for replacement, don't approve a part from a partial match. Provide the machine's make, model and serial number, the roller's side and position, photographs of both ends, the flange, the shell and the mounting with any markings, your entries and what remains unresolved. Ask the seller to confirm in writing that the candidate suits that machine and roller position. When the request is complete, the AFTparts Track Rollers collection can be used to find the relevant category and submit it for a fitment check. The collection page alone doesn't establish that any roller fits.
